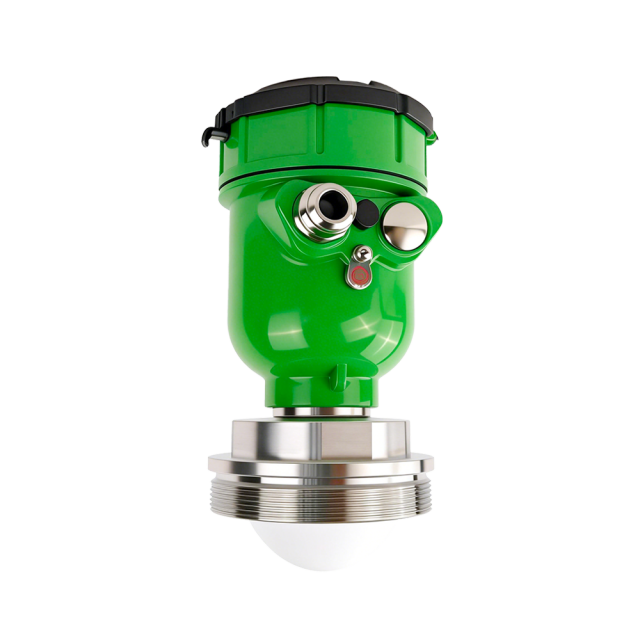

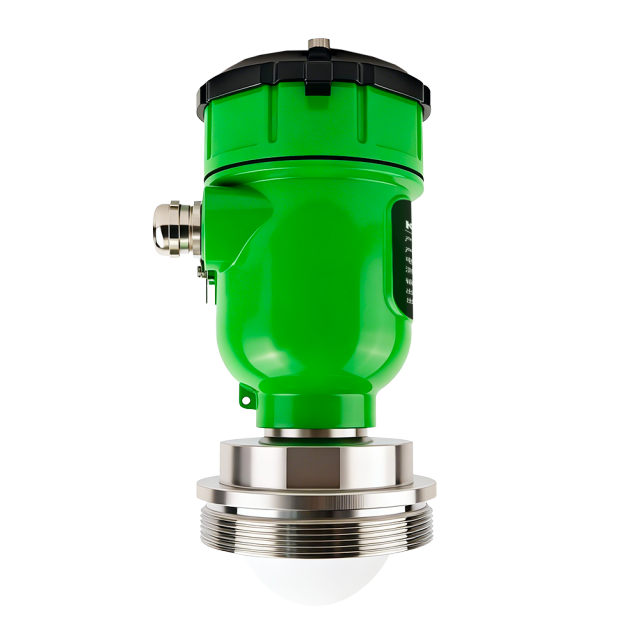

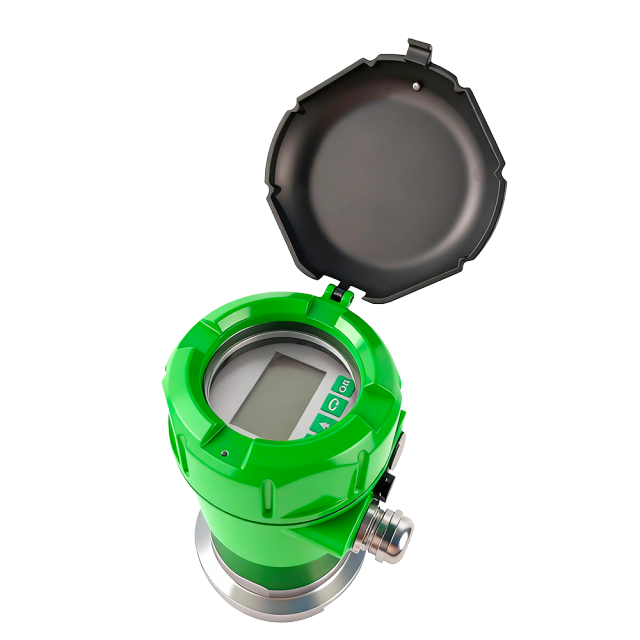

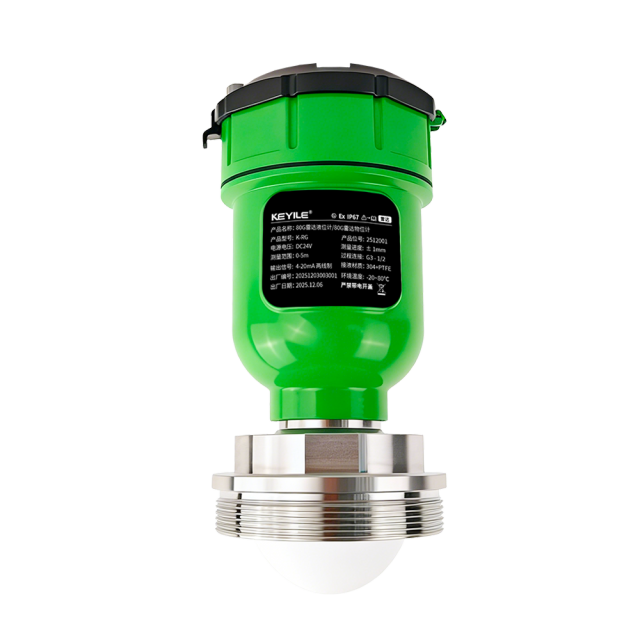

Name: KEYILE科译勒 K-RG80 80GHz Large thread radar level gauge
Brand: KEYILE SHOP
SKU: K-RG80-001
Availability: InStock
Rating: 5 (1 reviews)

Description
Download

Measurement Principle

The radar level transmitter operates on the time-of-flight principle.The radar wave travels at the speed of light, and its transit time is converted into a level signal by electronic components. The probe emits high-frequency pulses that propagate along the cable probe. When the pulses encounter the material surface, they are reflected to the receiver inside the instrument, which then converts the distance signal into a level measurement.

Product Features

① Utilizing in-house developed CMOS millimeter-wave RF chips to achieve a more compact RF architecture, higher signal-to-noise ratio (SNR) and reduced blind zone.
② The 5GHz operating bandwidth enables the product to achieve higher measurement resolution and accuracy.
③ The narrow 3° antenna beam angle minimizes interference from the installation environment and enables easier setup.
④ The shorter wavelength provides better reflectivity on solid surfaces, eliminating the need for a special swivel flange for alignment.
⑤ Remote debugging and upgrade capabilities minimize downtime and maximize operational efficiency.
⑥ Bluetooth-enabled mobile debugging facilitates on-site maintenance operations.

Application Areas

The 80GHzradarlevel transmitteris a high-precision non-contact measurement devicewidely usedin variousindustrial applications, particularly in environments demanding exceptionalmeasurement accuracyand stability.Typical application scenariosinclude:

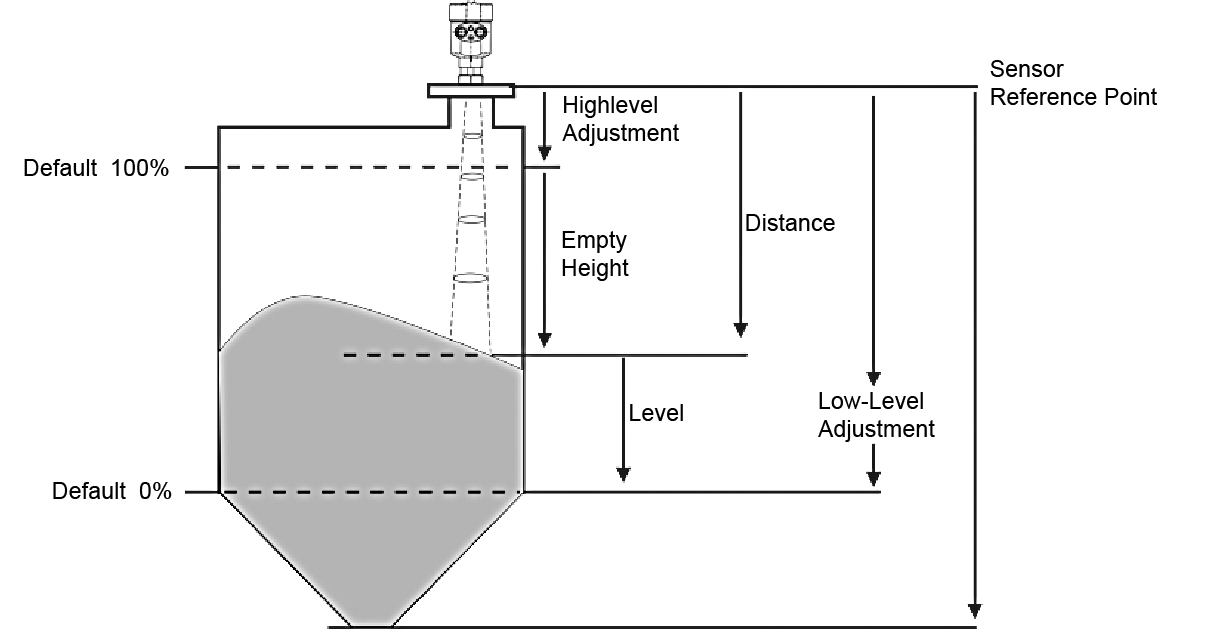

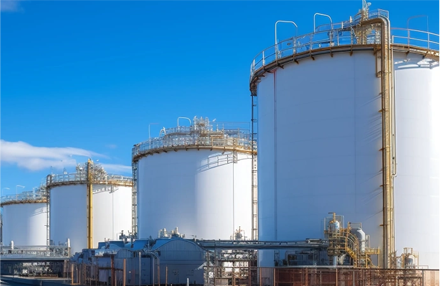

Oil Storage Tank Level Measurement: The 80GHz radar level transmitter can be mounted atop oil tanks to precisely measure liquid surf Sensor Reference Point ace elevation, enabling real-time inventory management of stored petroleum products.
River & Lake Level Monitoring: Ideal for open water bodies (rivers/lakes/reservoirs), the 80GHz radar delivers high-precision water level data with millimeter-wave accuracy.

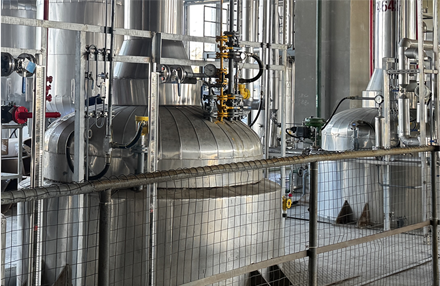

Chemical Industry Applications: The 80GHz radar level transmitter is specifically designed for chemical liquid storage tanks, delivering reliable level measurement even in harsh environments with Dust ，Vapor and Highly corrosive media
Bulk Solids Measurement: The 80GHz radar accurately measures solid materials like mineral powders and granules.


Storage Tank	River & Lake	Chemical Industry Applications	Bulk Solids Measurement

Technical Specification

Transmission Frequency	80GHz with 5GHz frequency modulation sweep bandwidth	Industrial Temperature / Humidity	40~85℃/≤95%RH
MeasuringRange	0.1~120m	HousingMaterial	Aluminum Alloy, Stainless Steel
Measurement Accuracy	±1mm	AntennaType	LensAntenna(OptionalLensAntennacover/Corrosion-ResistantAntenna/AntennaThermalpaste/QuartzIsolationflange)
Beam Angle	3° 、8°	Process Pressure	-0.1~2MPa
Applicable Dielectric Constant(εr) Range	≥2	Product Dimension	Ø100*270mm
Power Supply Range	18–28.0VDC, 2-wire (<1W)	Cable Entry	M20*1.5
Communication Methods	HART/MODBUS protocol	Recommended Cable	AWG18 or 0.75mm²
Signal Output Options	4~20mA (with HART protocol) or RS-485	Protection Rating	IP68
Fault Output	3.8mA, 4mA, 20mA, 22mA, Latch/Hold	Mounting Method	Threaded or Flange
On-site Operation /Programming	128×64 Dot-Matrix Display / 4 Physical Keys, Configurable via PC-Based Software	Net Weight/Gross Weight	2.480Kg/2.995Kg

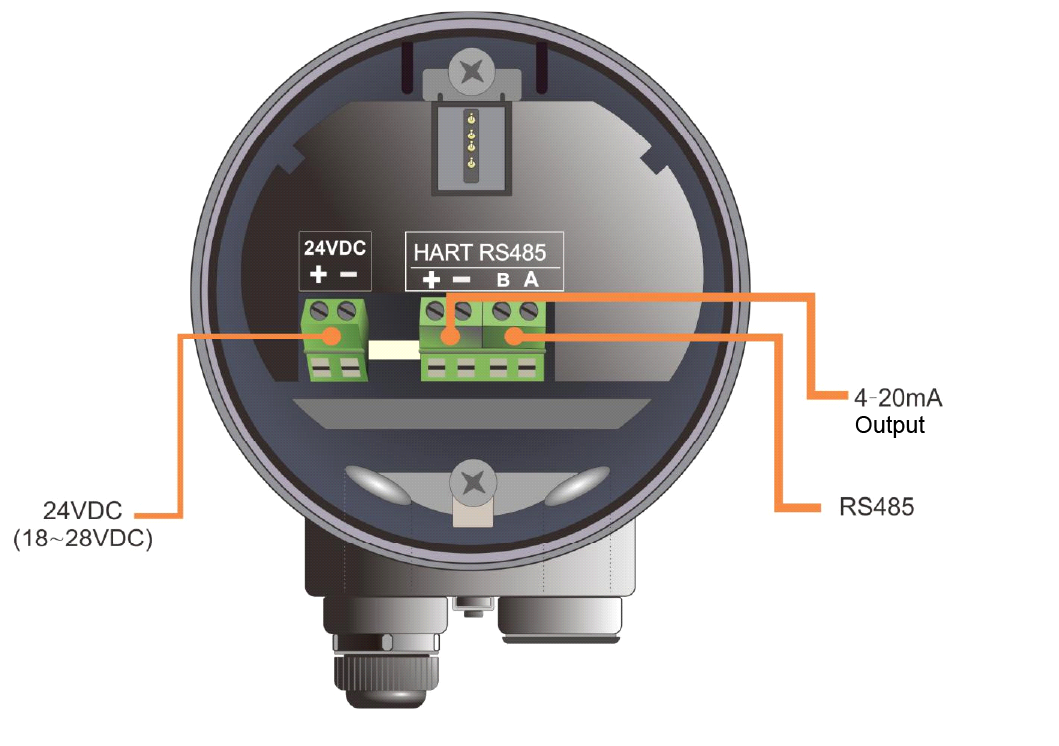

Single-Chamber Housing 24VDC Product Wiring DIagram(Reference)

Four-Wire 24VDC Power Supply Product Interface Description

PIN1	24VDC (+) Positive Power Supply
PIN2	24VDC (-) Negative Power Supply
PIN3	HART(+)，i.e.,4-20mA(+)，4-20mA Positive Current Output
PIN4	HART(-)，i.e,4-20mA(-)，4-20mA Negative Current Output
PIN5	RS485(A)，485 Communication Line
PIN6	RS485(B)，485Communication Line

Product Installation

Key Installation Considerations:

(1)Align with the target material level and ensure perpendicular incidence onto the material
surface.
(2)Avoid false echoes. Refer to the following typical working conditions.

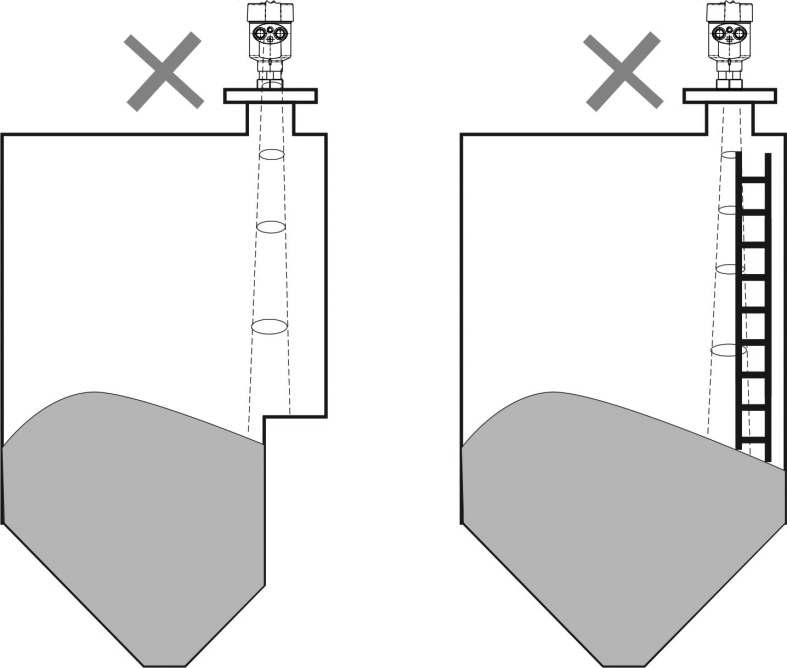

Ensure no obstructions (such as step ladders or stairs) are present within the beam coverage area, as shown in Figure 1.

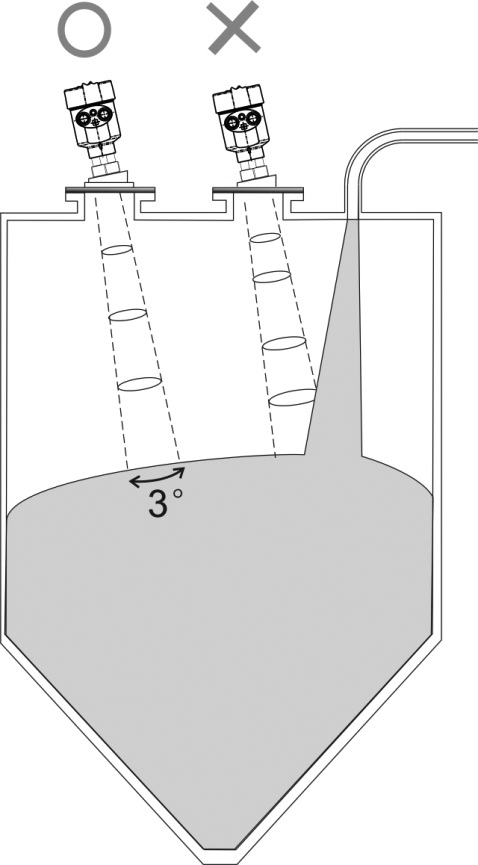

The instrument should be installed so that the antenna beam avoids the feed inlet,as shown in Figure 2.

Figure 1: Schematic Diagram of Figure 2
Instrument Instanllation Location

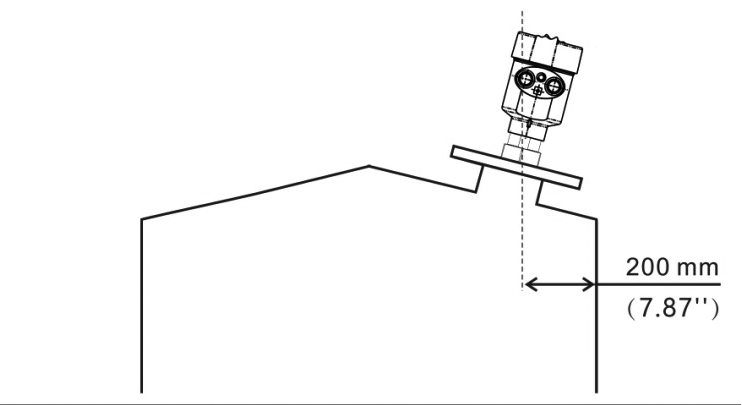

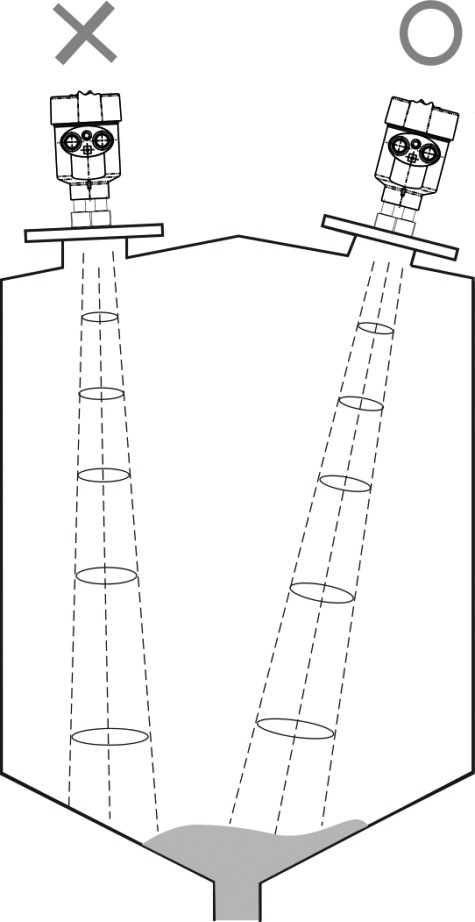

	Mount the Instrument at least 20 cm(200mm) away from the container wall. Failure to do may result in false reading (See Figure 3). For conical vessels, ensure the beam directly impacts the material surface at the bottom. Otherwise, measurement at the tank bottom maybe inaccurate (See Figure 4).
Figure 3 Figure 4
