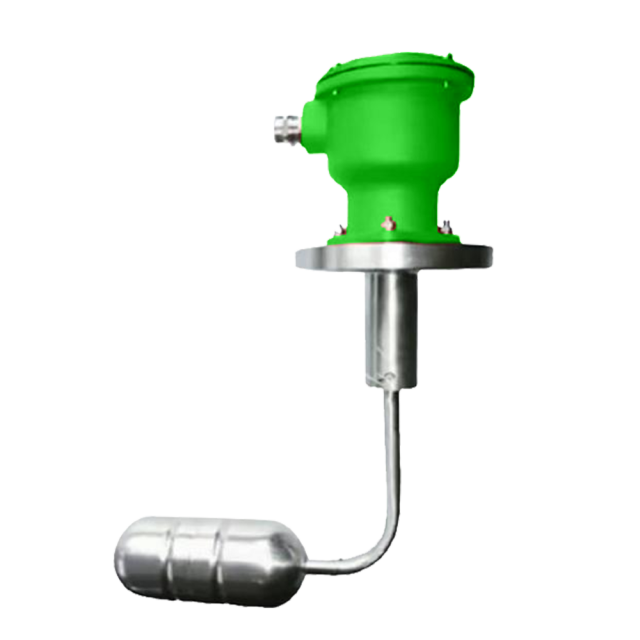

KEYILE科译勒 K-SMFLS30/31 Side mounted float level switch

Instrument Feature

Working Principle

When the floating ball floats up and down under the buoyancy of the liquid, the interaction between the magnetic spring switch (or micro switch) inside the junction box and the arm end magnet causes the magnetic spring switch (or micro switch) to move. At the same time, it outputs an ON/OFF signal for alarm notification or remote control.

Application Field

Product Series

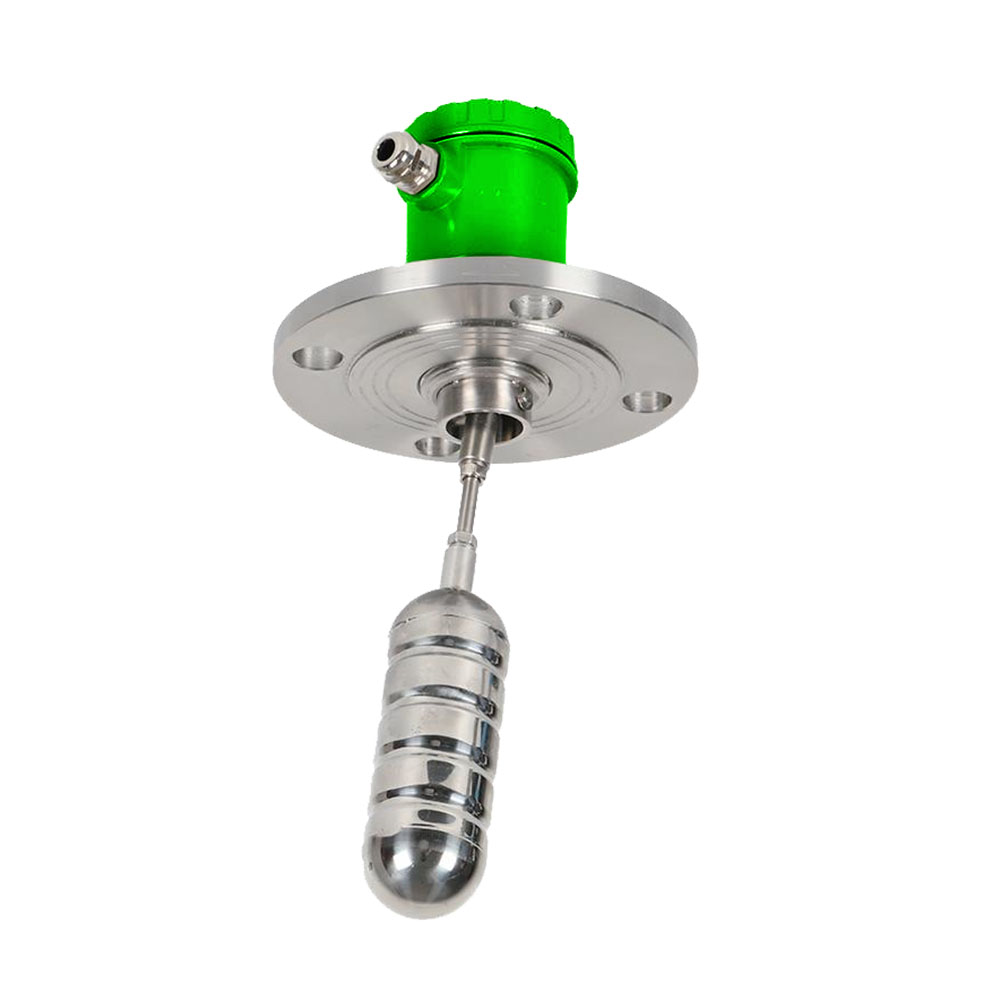

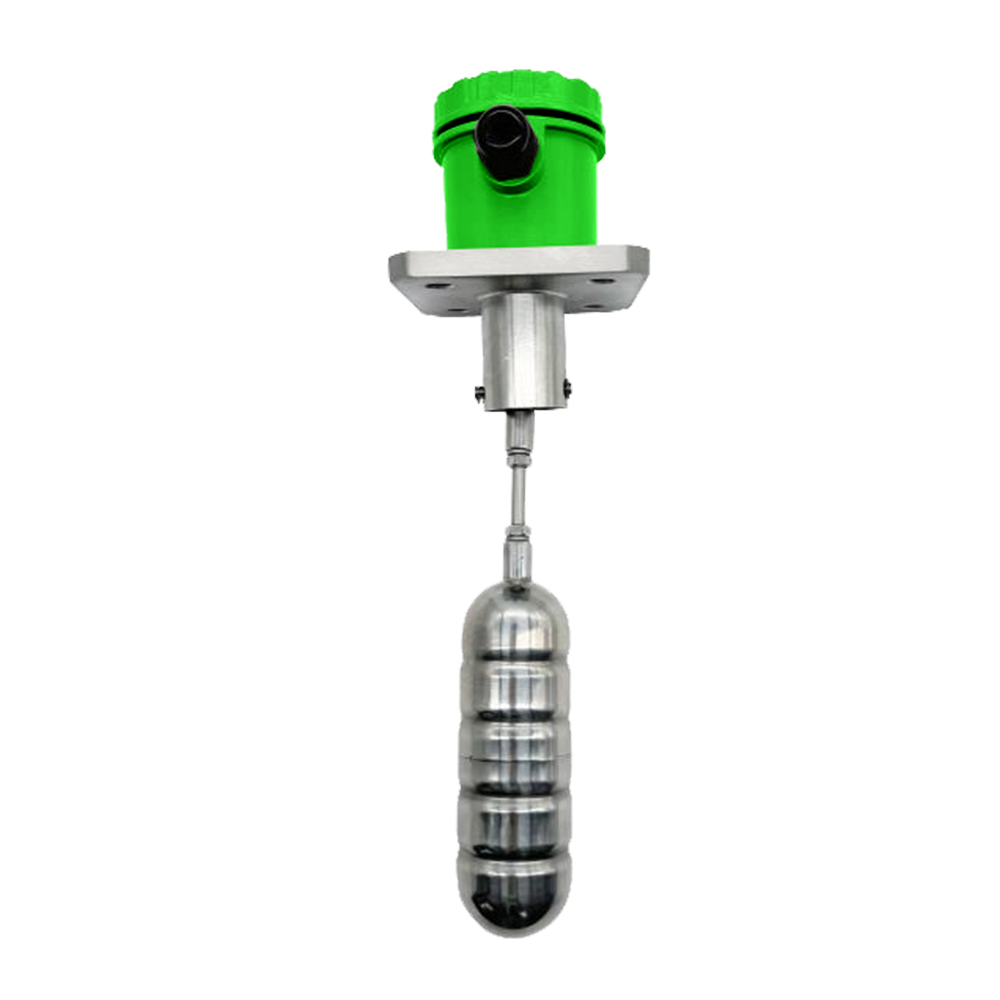

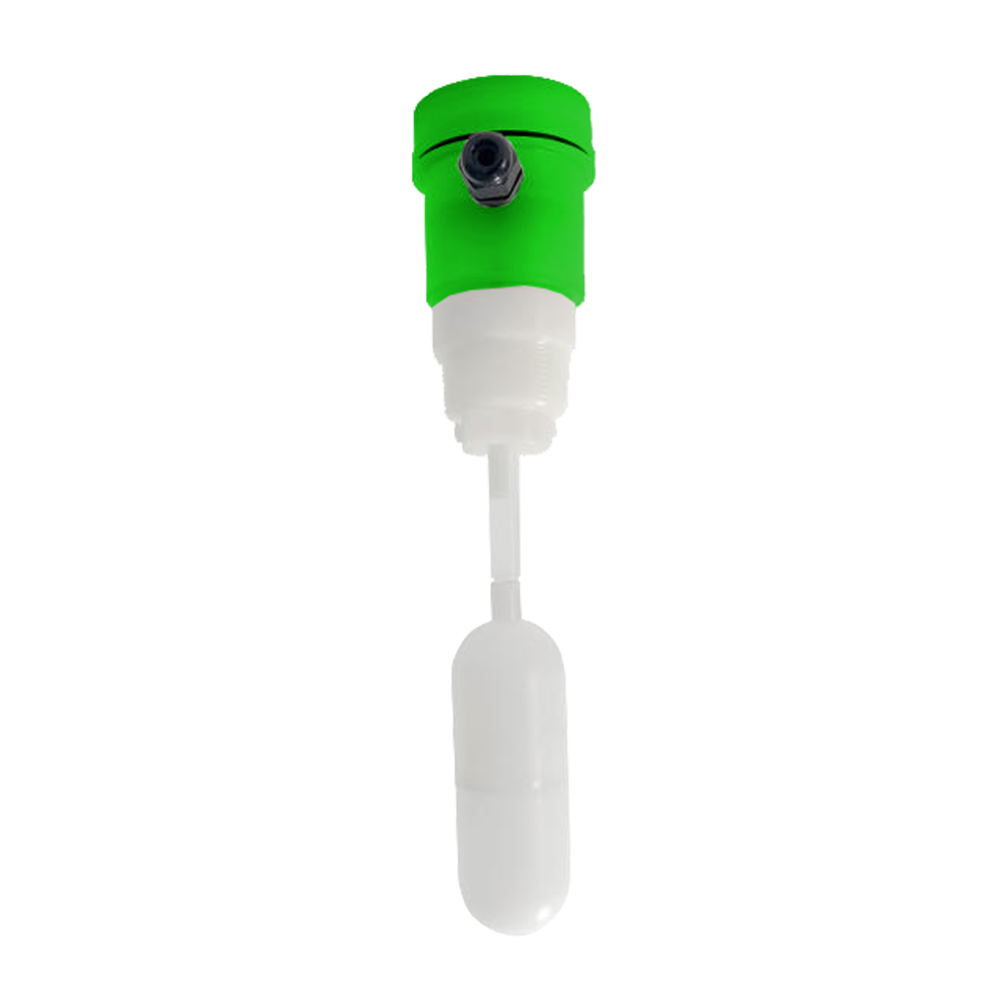

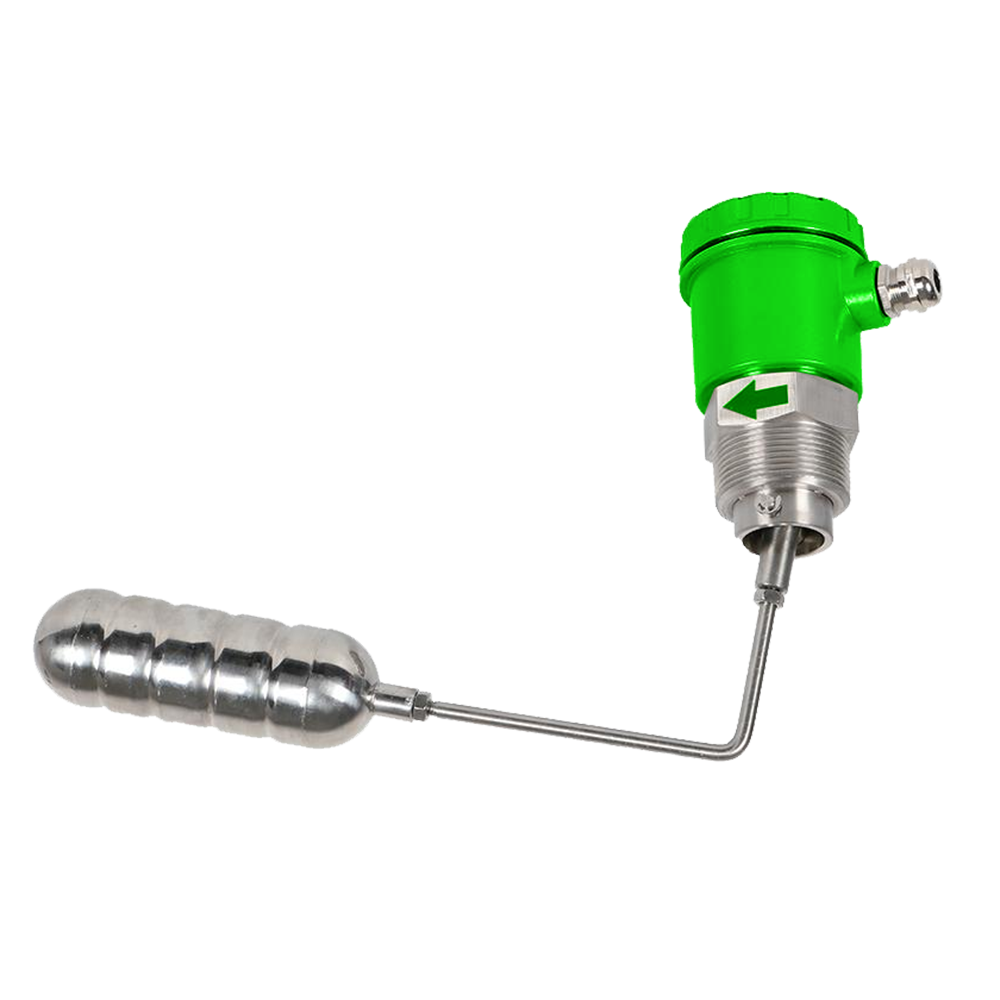

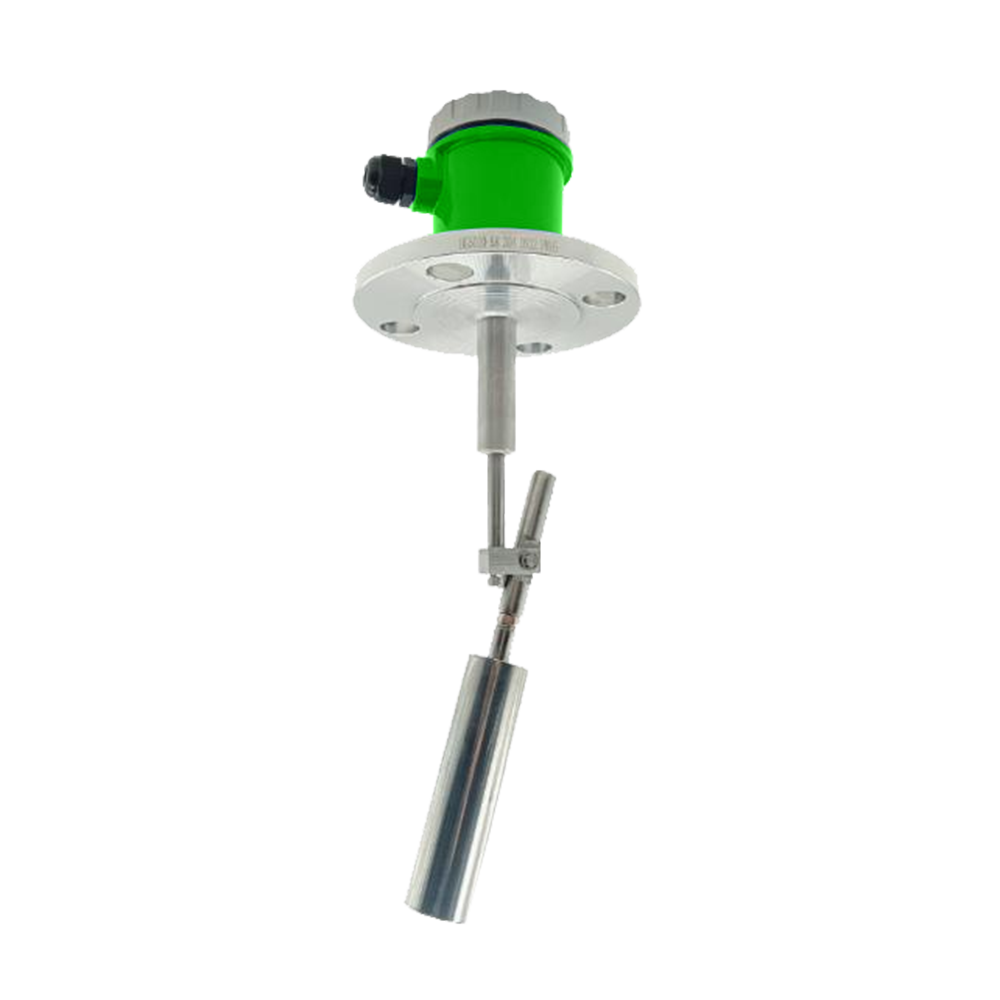

	Side mounted standard thread	Side mounted standard method	Side installation method: Blue shaped	Side mounted duckbill flange

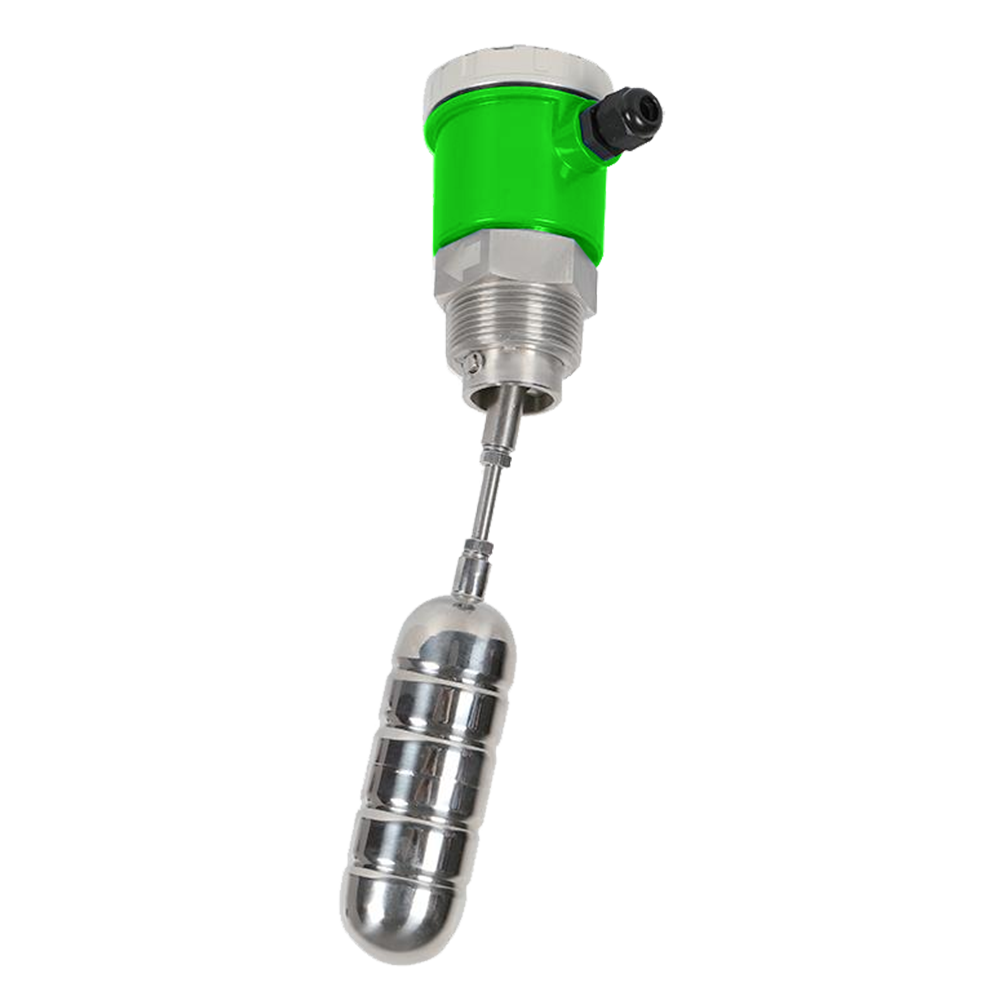

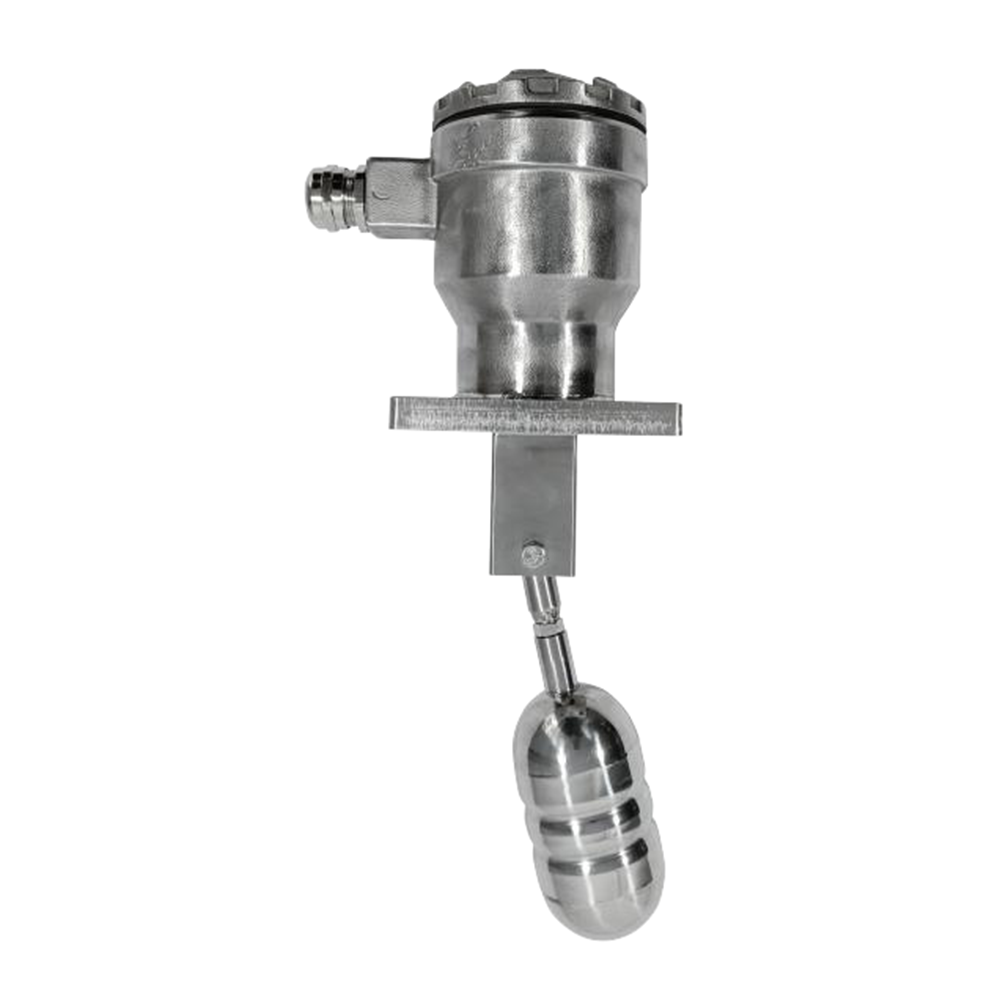

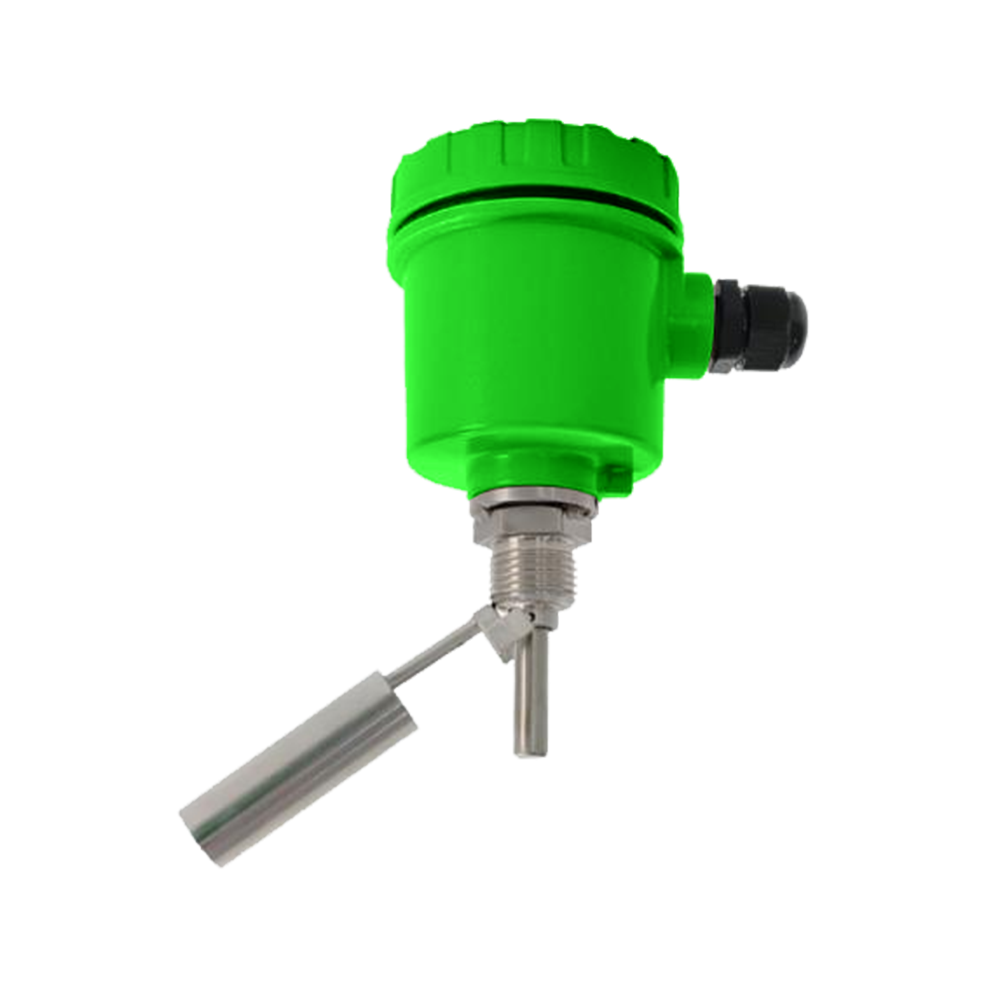

	Side mounted duckbill thread	Side mounted full PP type	Top mounted thread	Side mounted flange fully stainless

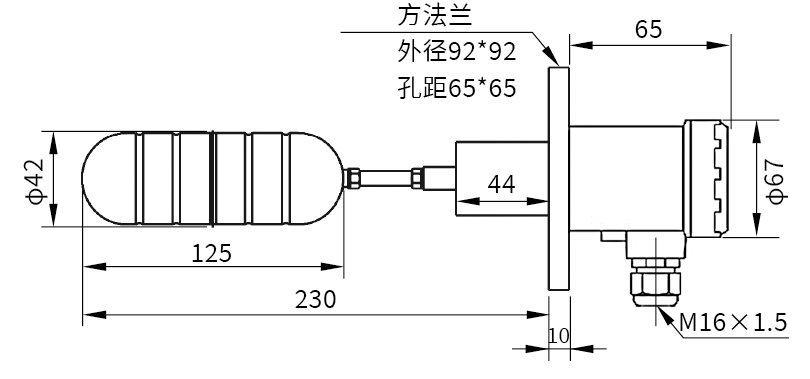

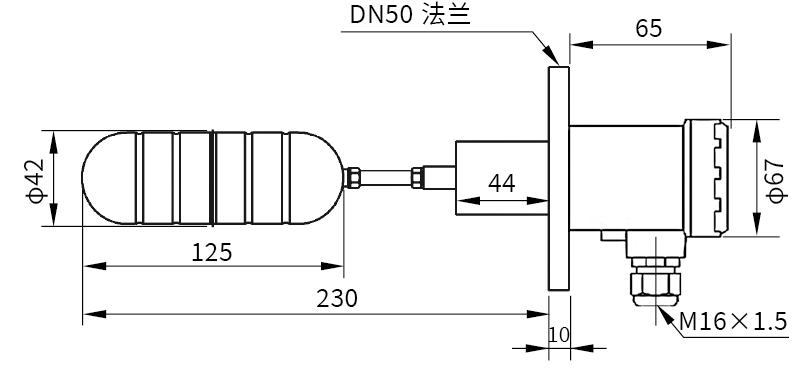

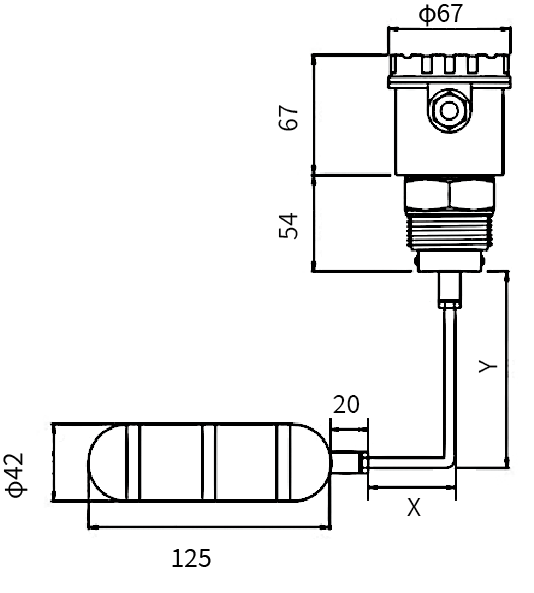

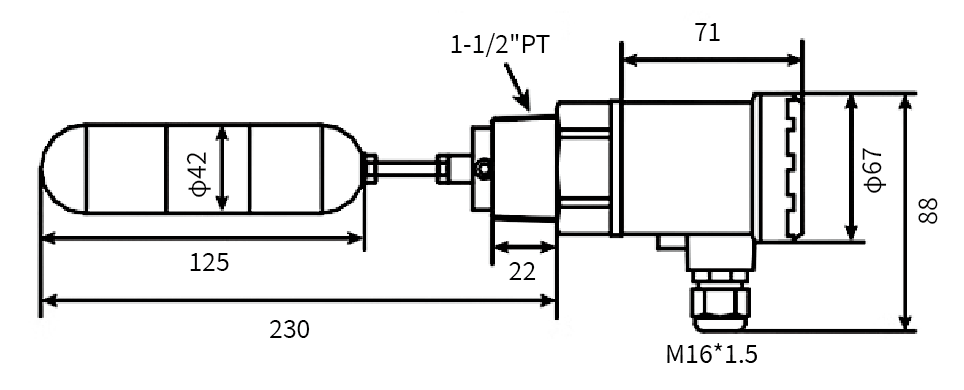

Technical parameters and external dimensions (reference)


Model K-SMFLS30-10 Type Side mounted standard thread type Junction box ABS aluminum Material SUS304 or SUS316L Connection method 1-1/2 "PT thread Temperature resistance -20~100 ℃ (customizable 350 ℃ high temperature type) Output contact 5A/220VAC Contact arrangement  SPDT Applicable specific gravity 0.55g/cm³ Installation method horizontal installation	Model K-SMFLS30-20 Type Side mounted standard flange type Junction box ABS aluminum Material SUS304 or SUS316L Connection method DN50 flange (customizable) Temperature resistance -20~80℃ Output contact 5A/220VAC Contact arrangement  SPDT Applicable specific gravity 0.55g/cm³ Installation method horizontal installation	Model K-SMFLS30-20F Type Side installation method: Blue shaped Junction box ABS aluminum Material SUS304 or SUS316L Connection method Method Lan (customizable) Temperature resistance -20~80℃ Output contact 5A/220VAC Contact arrangement  SPDT Applicable specific gravity 0.55g/cm³ Installation method horizontal installation

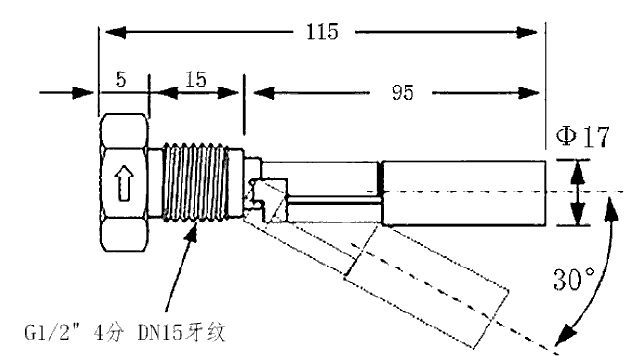

Model K-SMFLS30-10A Type Side mounted duckbill thread type Junction box ABS aluminum Material SUS304 or SUS316L Connection method G1/2 "thread Temperature resistance -20~80℃ Output contact 5A/220VAC Contact arrangement  SPDT Applicable specific gravity 0.55g/cm³ Installation method horizontal installation	Model K-SMFLS30-10B Type Side mounted floating ball full PP type Junction box Polypropylene PP Material Polypropylene PP Connection method 1-1/2 "PT thread Temperature resistance -20~100 ℃ (customizable 350 ℃ high temperature type) Output contact 5A/220VAC Contact arrangement  SPDT Applicable specific gravity 0.55g/cm³ Installation method horizontal installation	Model K-SMFLS31-10 Type Top mounted threaded type Junction box ABS aluminum Material SUS304 or SUS316L Connection method 1-1/2 "PT thread (customizable) Temperature resistance -20~80℃ Output contact 5A/220VAC Contact arrangement  SPDT Applicable specific gravity 0.55g/cm³ Installation method Vertical installation

Installation method

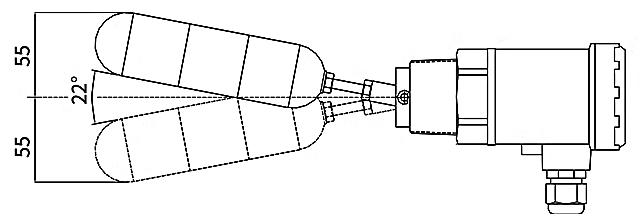

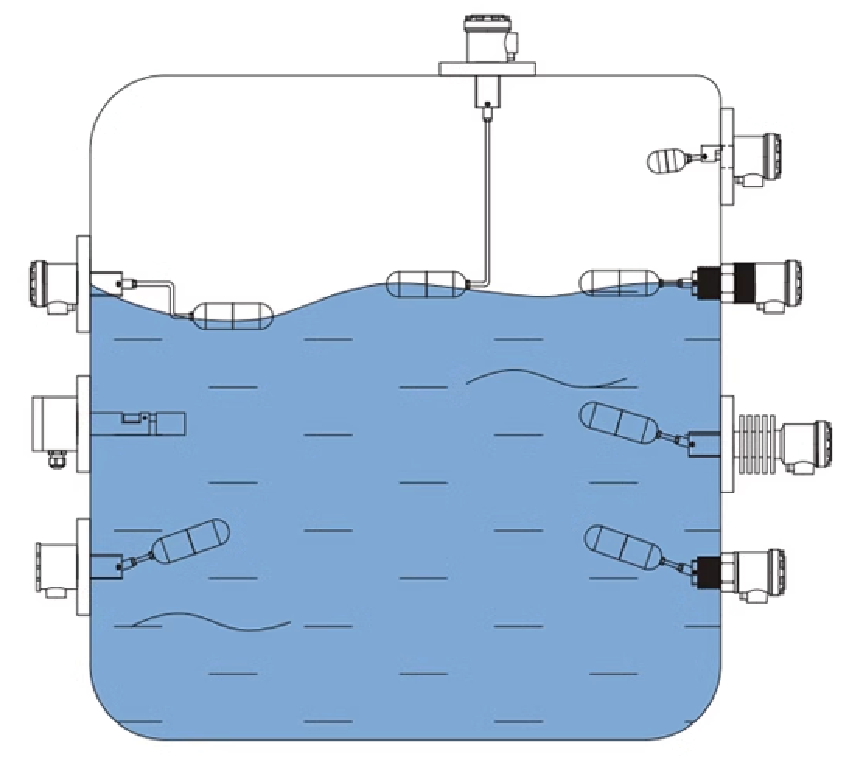

The installation should be kept away from the water inlet (outlet) to avoid misoperation caused by water fluctuations; Installed in areas with mixing, anti wave tubes or baffles can be installed; The load of the control circuit cannot be used beyond the limit of the contact capacity;  The angle at which the float and its connecting rod move up and down (relative to the horizontal line) is ± 14 degrees, and the switch is activated when the float is in a horizontal position; During installation, attention should be paid to the length and aperture size of the connecting pipe that matches it to ensure the floating range of the floating ball. Note: There may be a certain degree of error in the total length of the float and connecting rod parts.
