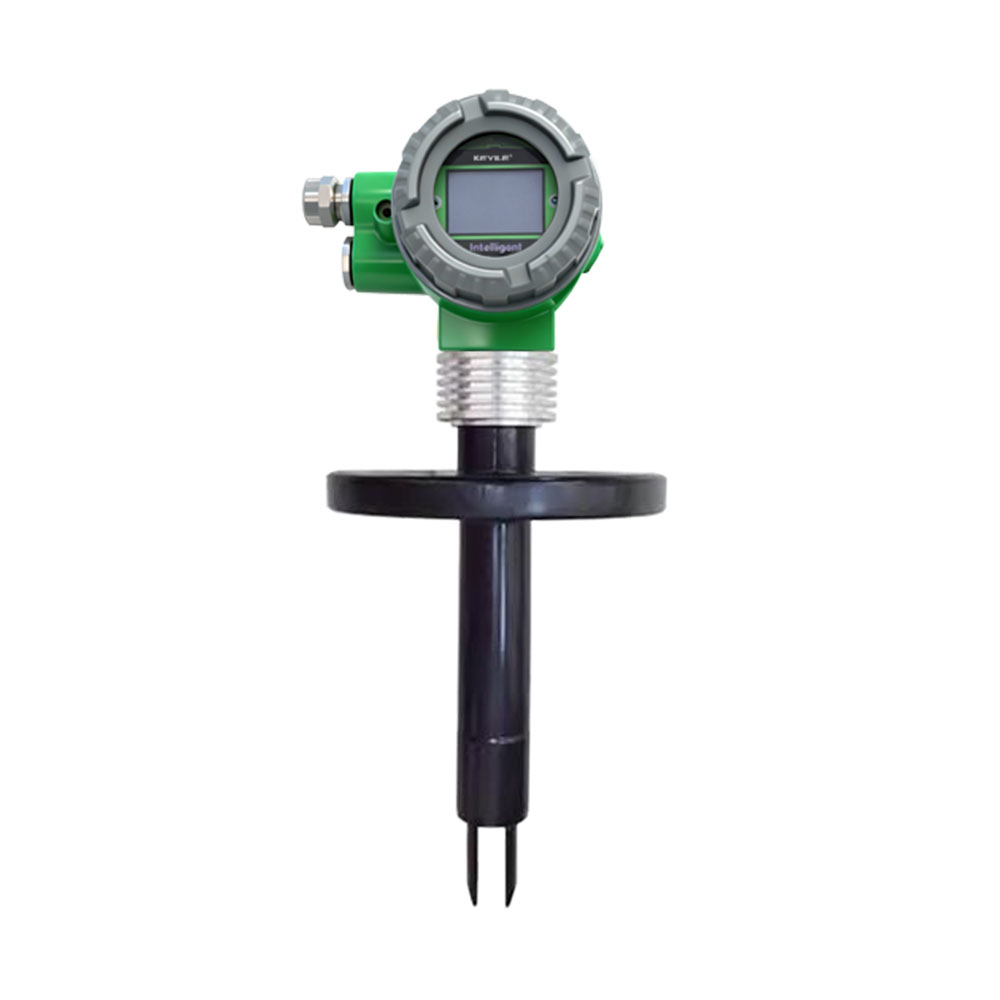

Instrument Feature
|
Application Field
|
Insertiontype densitymeter(concentration meter) candetect densityonline in real time. It canbe usedforprocess control of products withdensityas basicparameterorqualitycontrol with solidpercentage or concentrationpercentage as reference. Typical industries include petrochemical industry, brewingindustry, foodindustry, pharmaceutical industryandmineral processing(such as clay, carbonate, silicate, etc.), andit is specificallyused forinterface detection inmulti-product pipelines inthe above industries, densitydetection ofstirredmixtures, endpoint monitoringof reactors, andinterface detection ofseparators. |
Working Principle
|
The sensor works based on the principle of component vibration. The component part is the tuning fork part immersed in the measured liquid. The tuning fork part senses vibration through the internal piezoelectric device fixed at one end of the bottom of the fork body. The oscillation frequency is detected by the secondary piezoelectric device fixed at the other end of the fork body, and then the signal is amplified by the circuit at the top. The liquid density is closely related to the vibration frequency of the measured liquid when it flows. When the density of the measured liquid changes, the vibration frequency of the liquid flow also changes. The density of the measured liquid can be accurately calculated by the following equation. D= K0+K1T+K2T2 D=uncalibrated density of the measured medium (kg/m3) T=vibration frequency (μ s) K0, K1, K2=constant During the density detection process. The insertion densitometer (concentration meter) can automatically compensate for the influence of temperature on the density (D) of the measured medium, and pressure has no significant effect on density. |

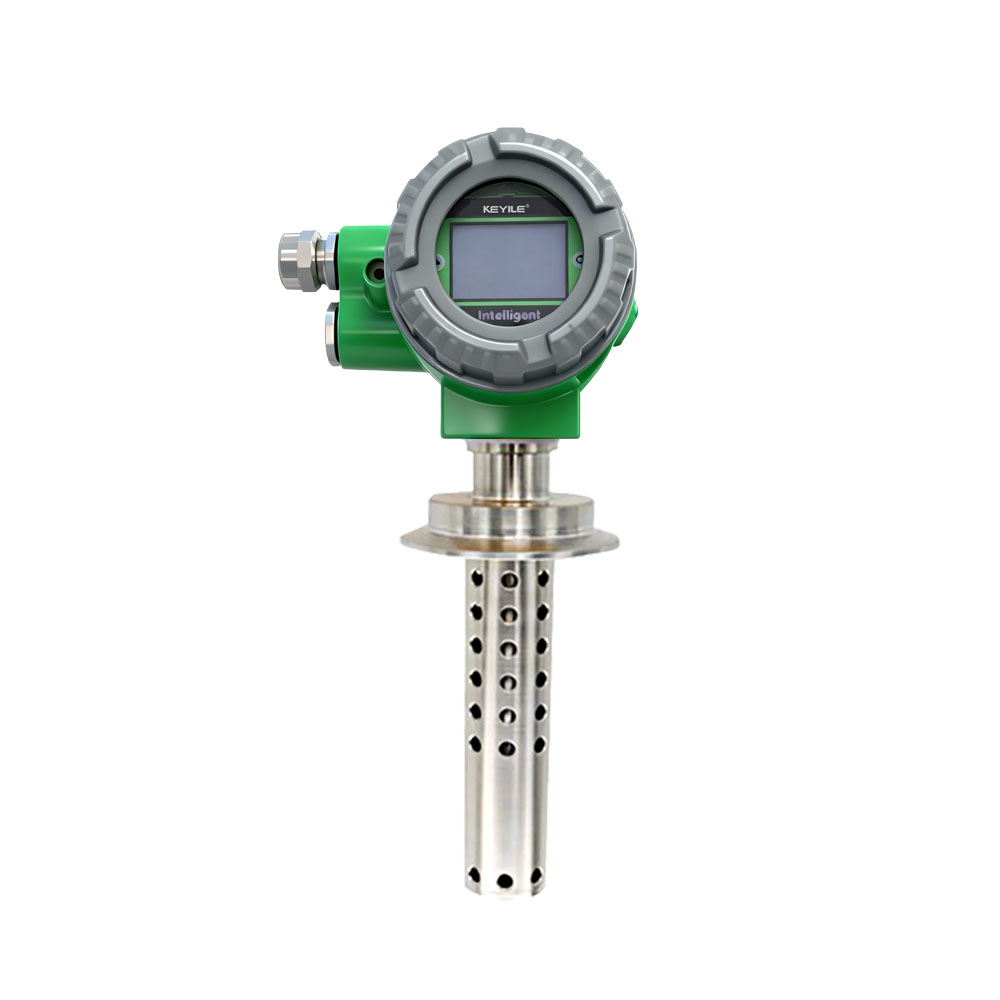

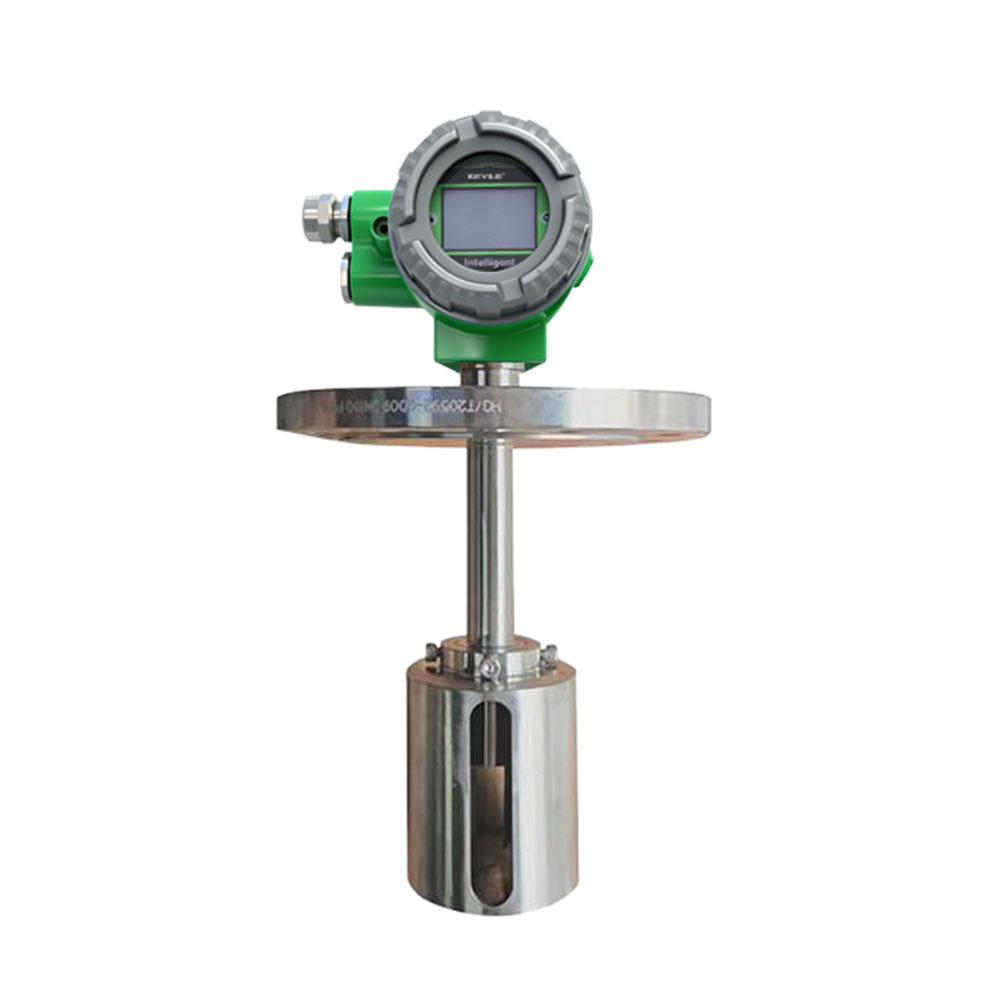

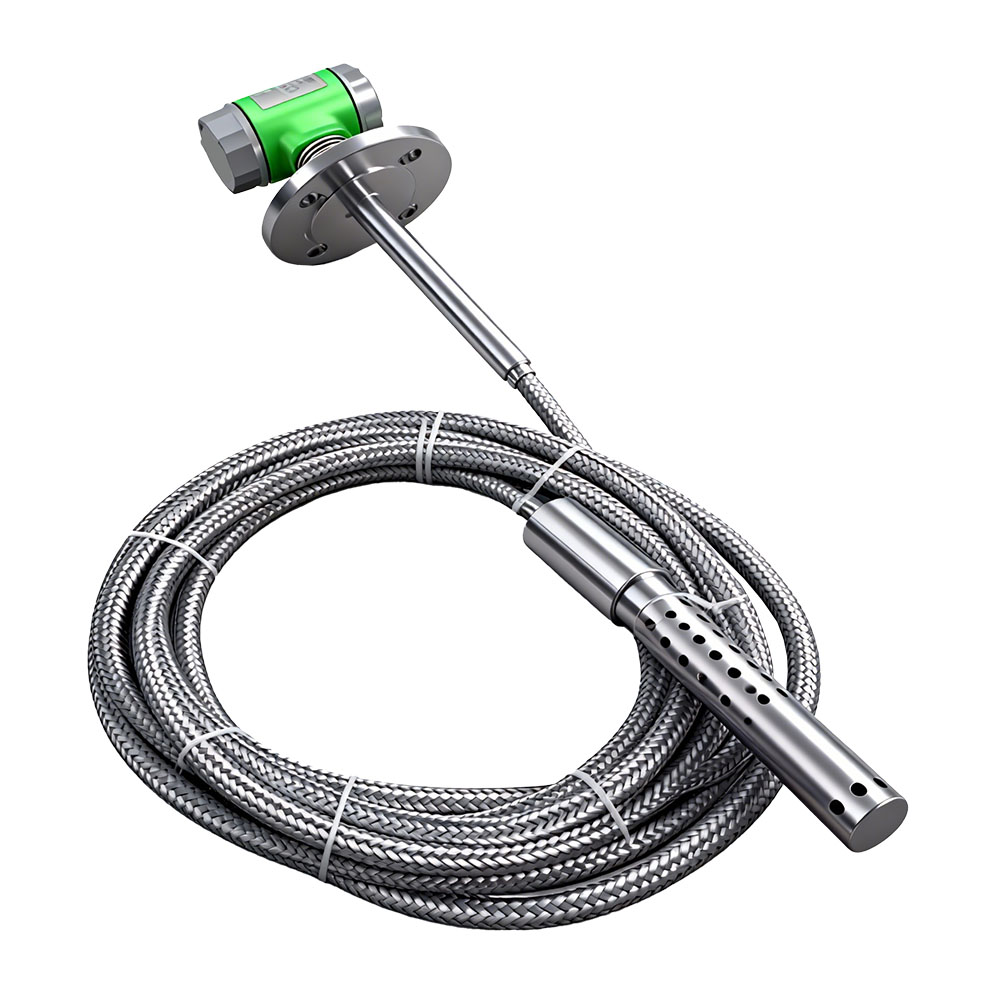

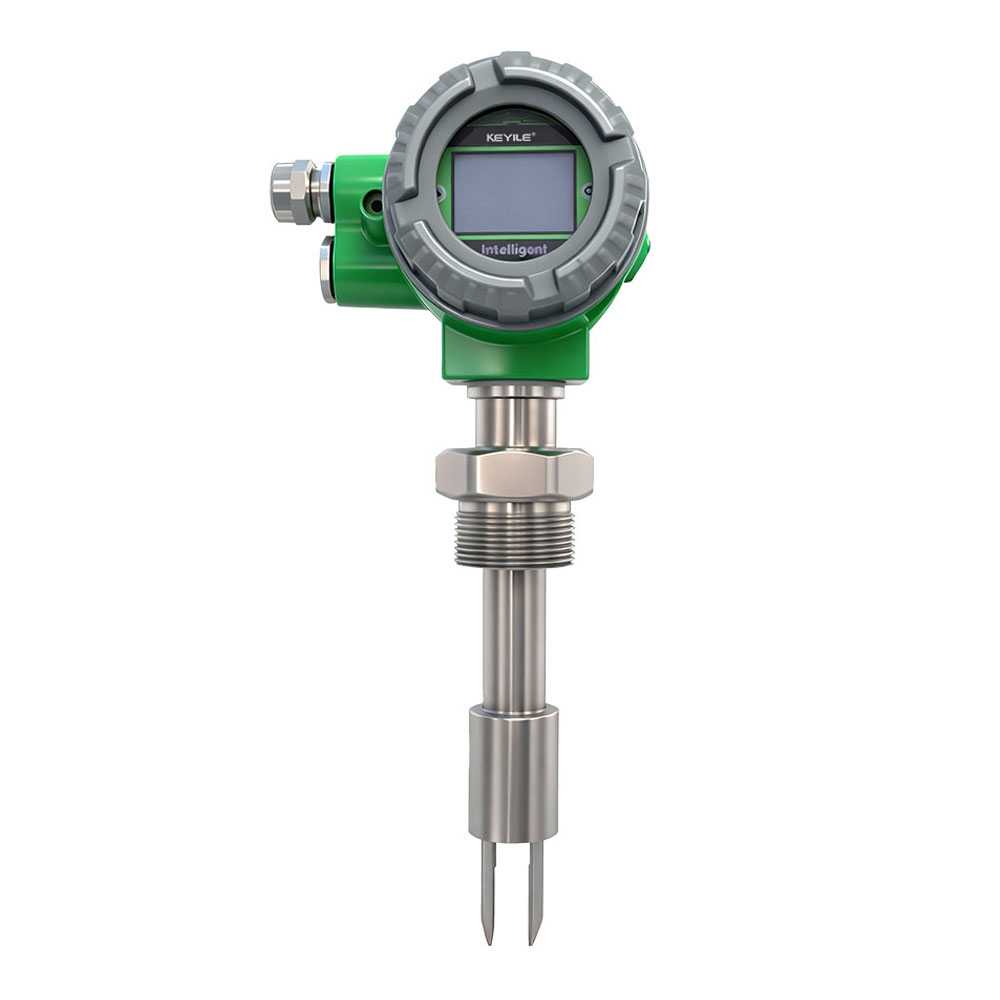

Product Line
|
Technical Specification
|

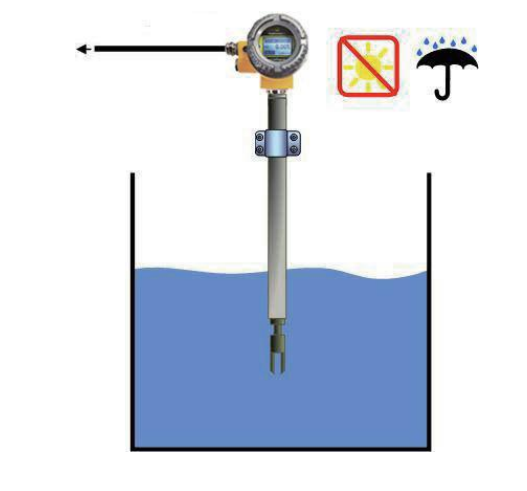

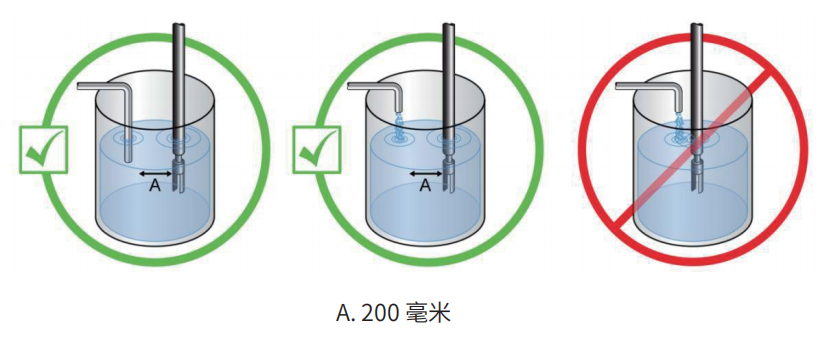

Mechanical Installation
|

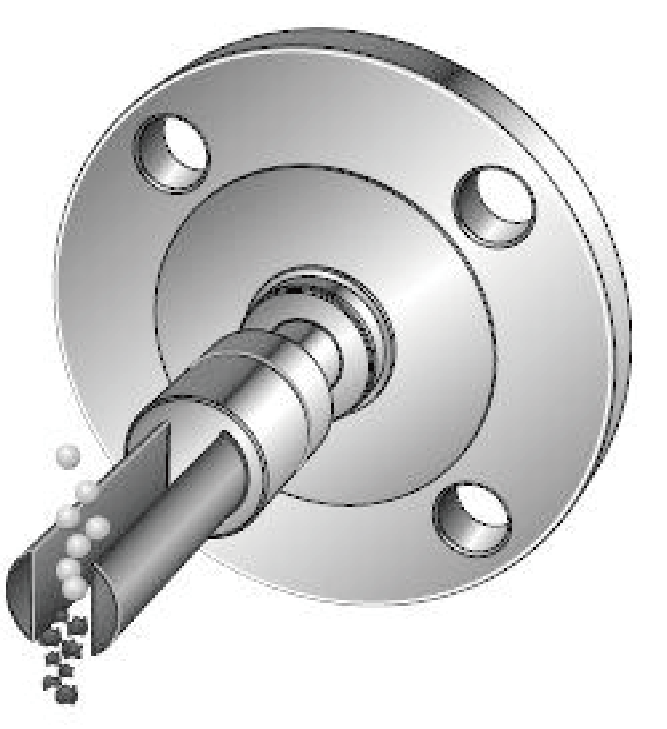

Unlike pipeline density sensors, the fork of the insertion density meter (concentration meter) is not fully enclosed.
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
2. Calculation of flow velocity V = Q / (1/4 *π *d2) Example: Flow rate 20m3/h Pipe diameter 100mm V = 20 / 3600 (/ 1/4 * 3.14 * 0.1* 0.1) = 0.7 m/s |

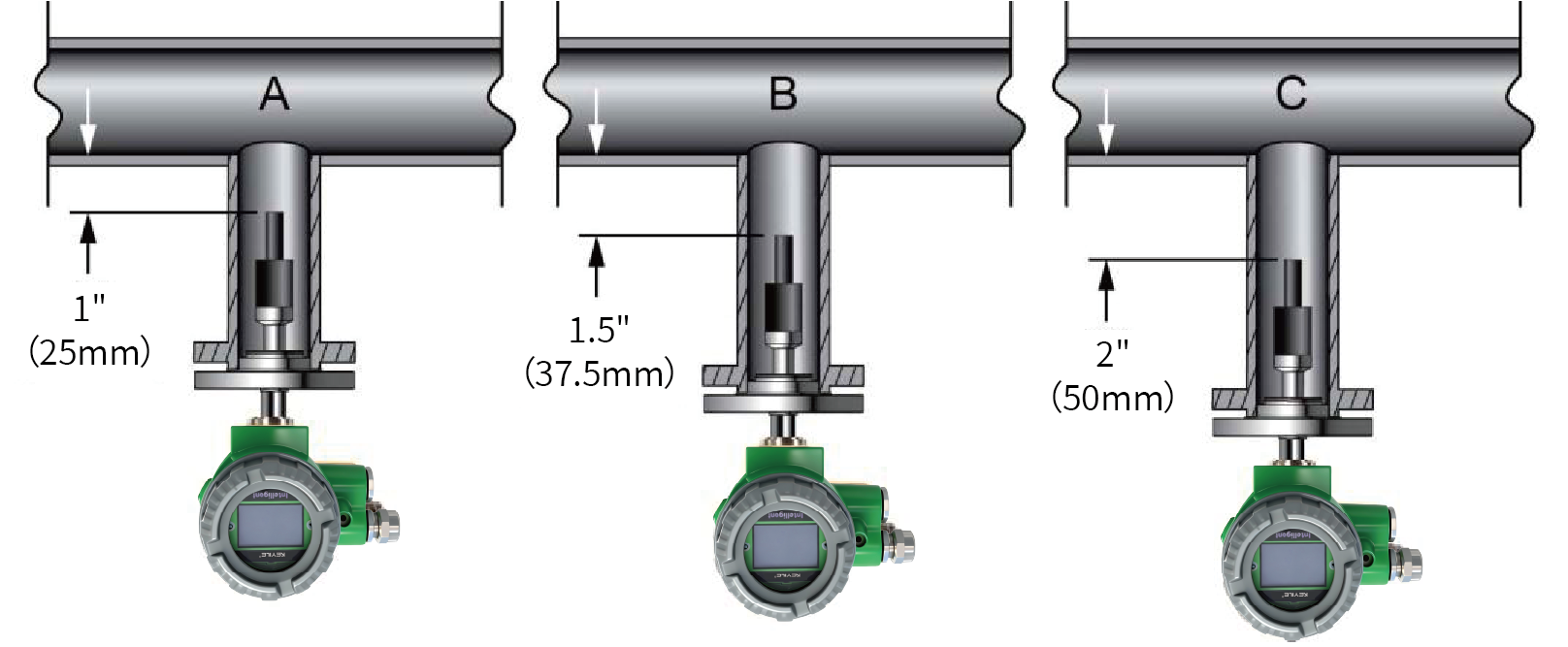

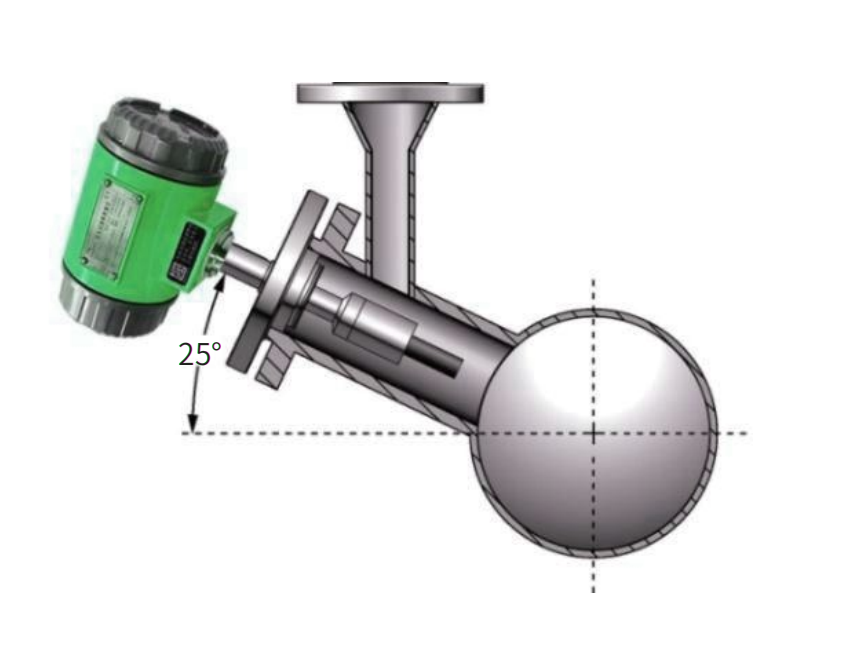

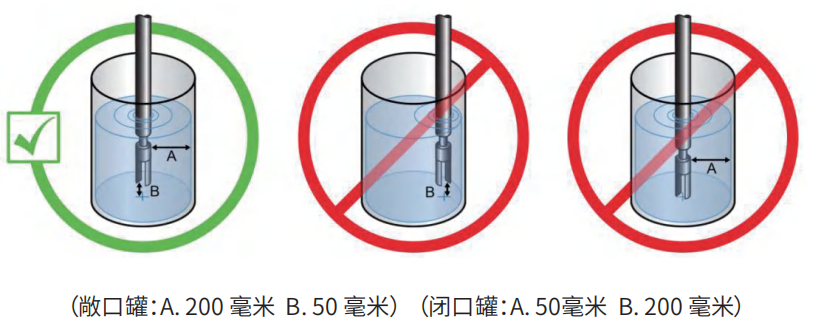

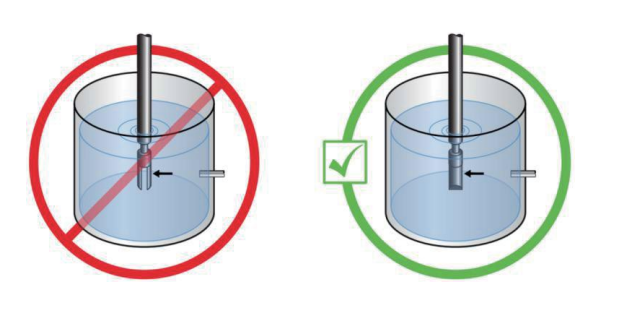

||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| 3. Installation and positioning | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

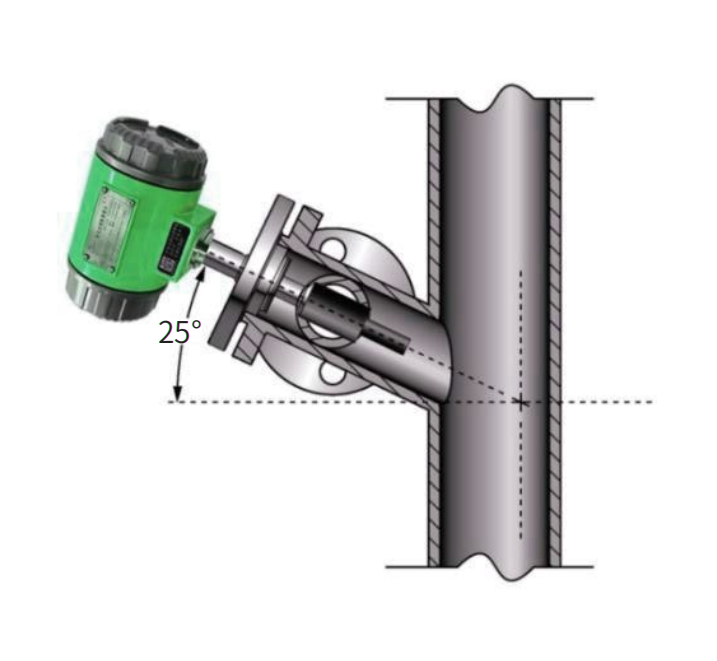

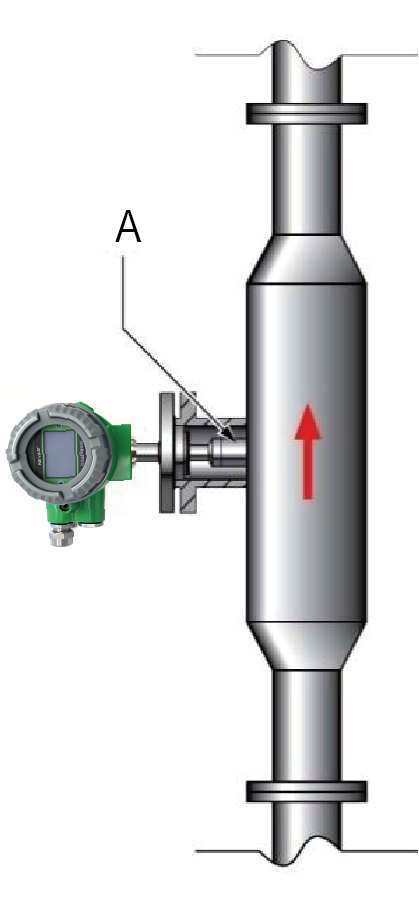

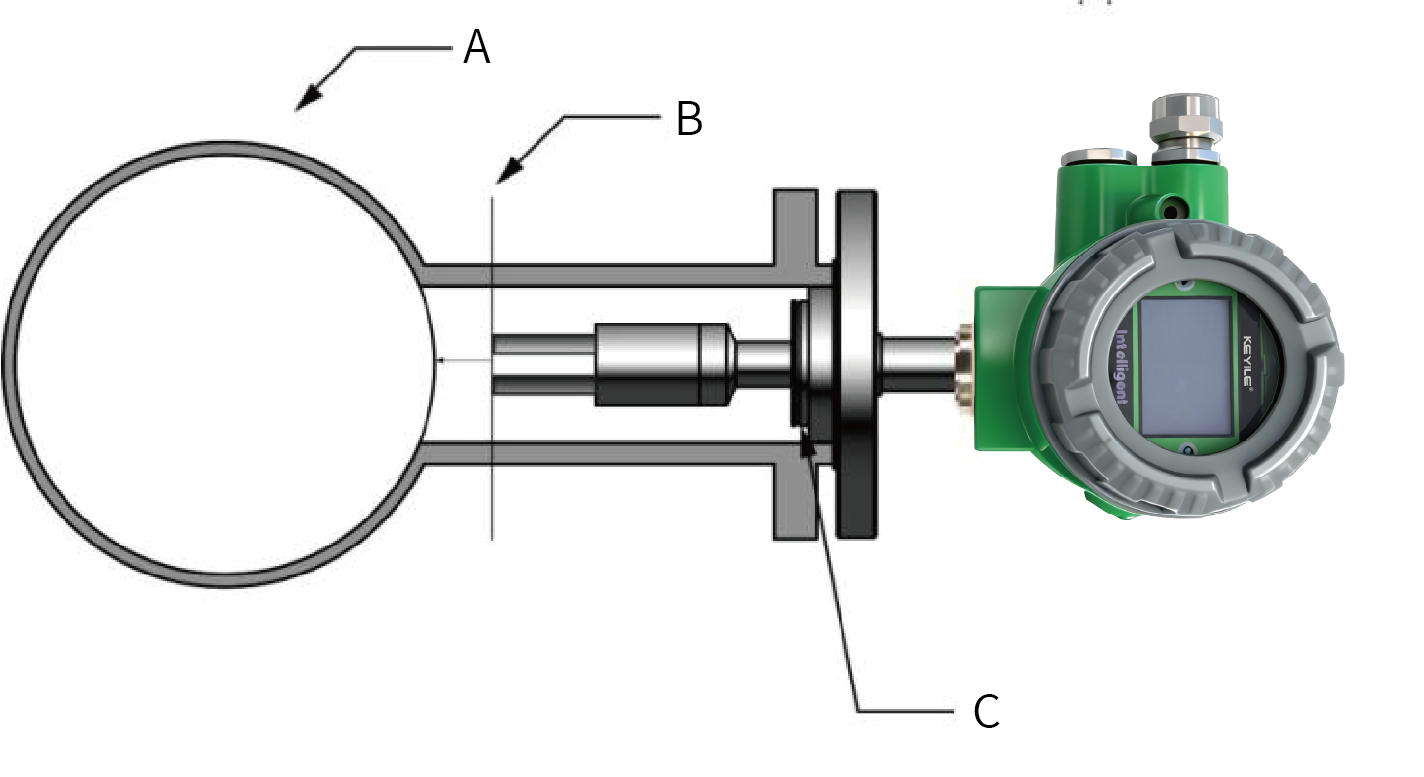

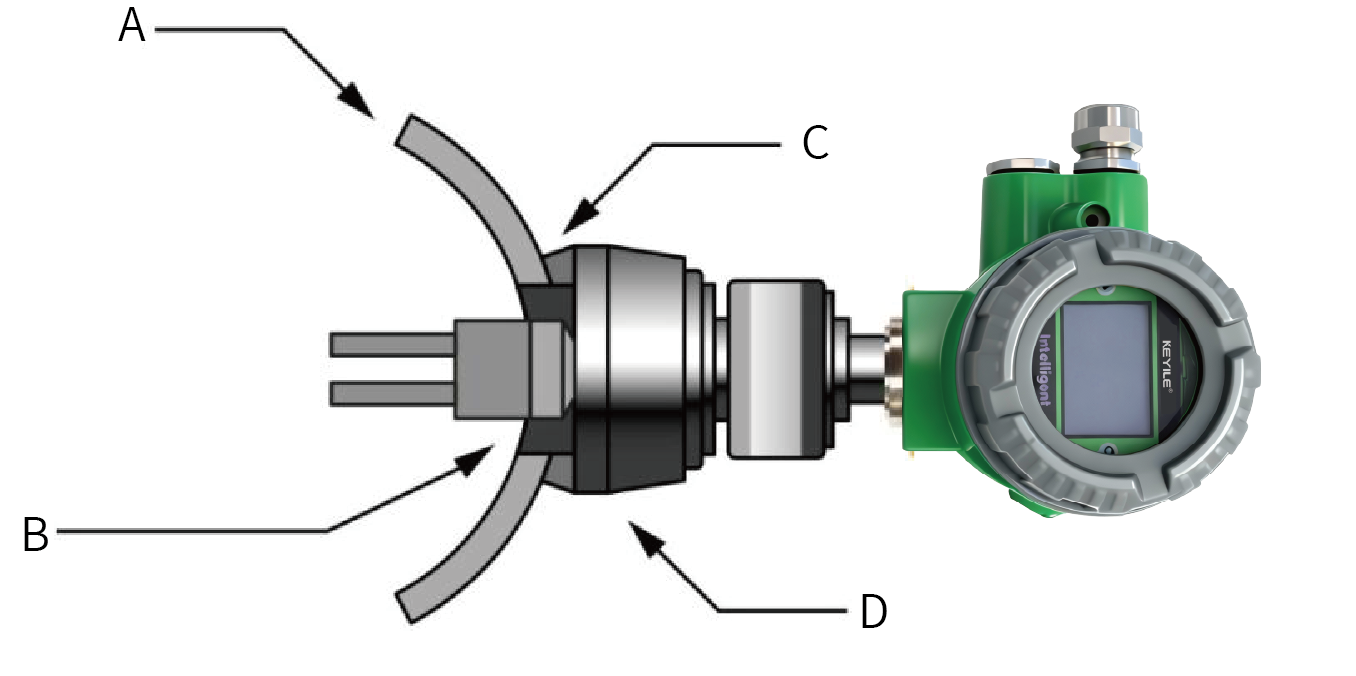

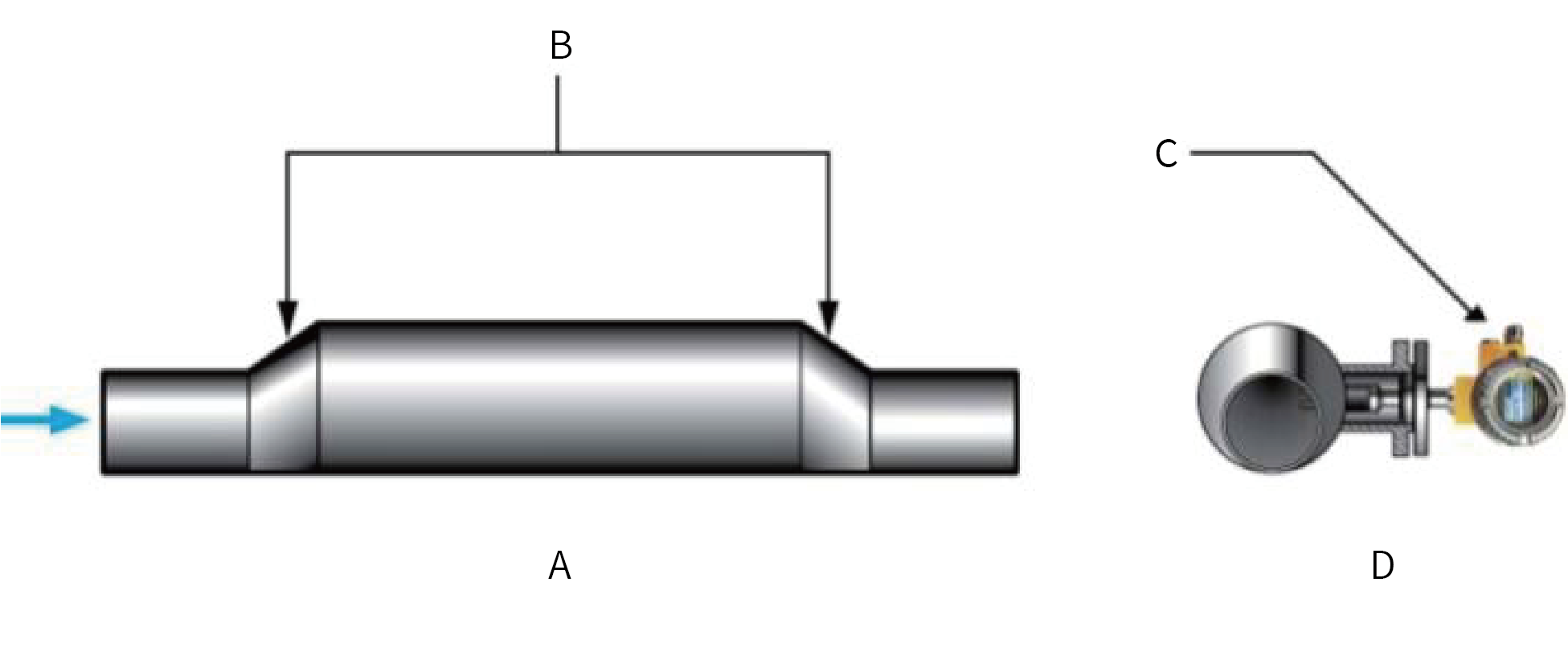

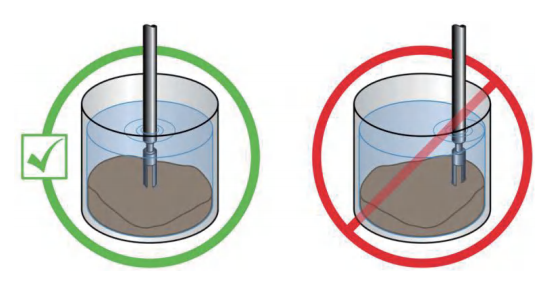

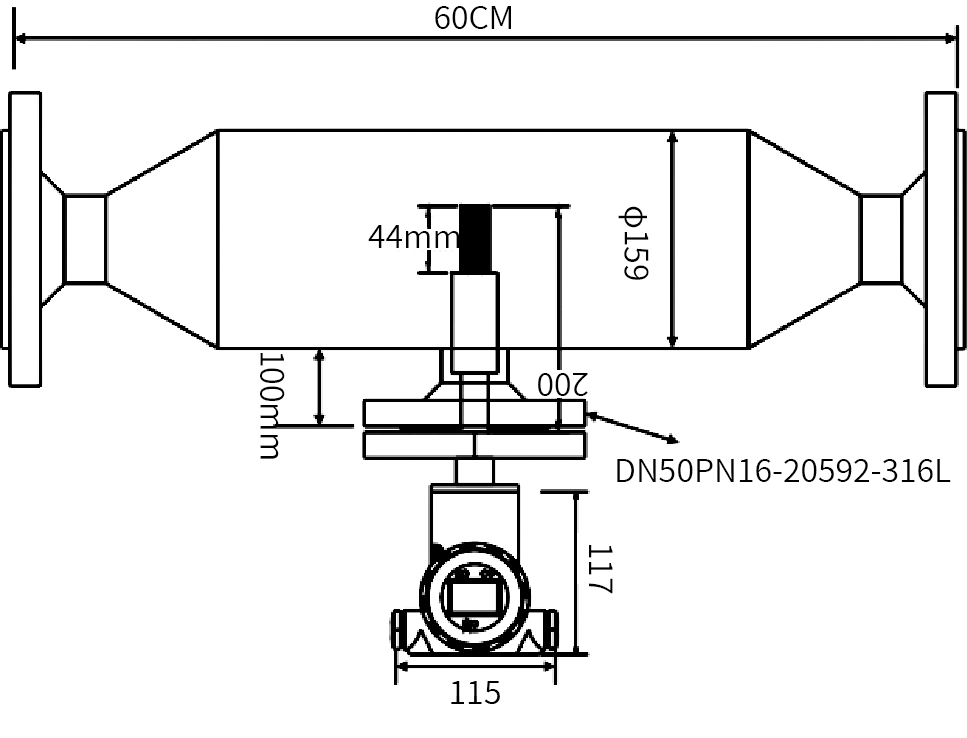

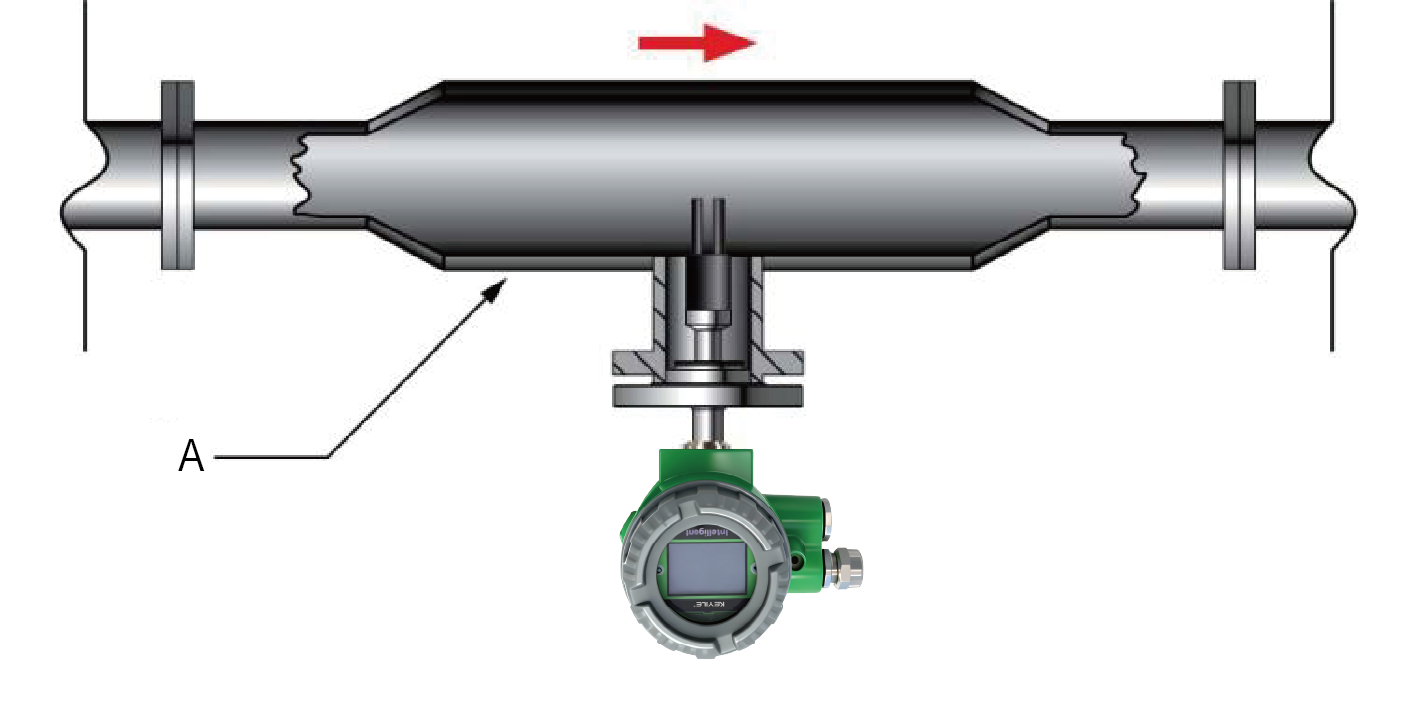

| In order to ensure that the density meter can measure accurately and display stably, the flow rate of the measured medium shall not be greater than 1m/s, and the diameter of the pipe where the density meter is installed shall be greater than or equal to 159mm. The location where the density meter is installed should be as far away from the pump as possible, and the distance should preferably be greater than 5m; when the flow rate is greater than 1m/s, the expansion installation is adopted. For every increase of 1m in the flow rate, the diameter of the pipe where the density meter is installed is expanded by 1.5 times. There must be a straight pipe section of ≥600mm in front of the meter and a straight pipe section of ≥300mm behind the meter to ensure that the fluid is in a laminar state when flowing through the fork body. As shown in the figure: |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
