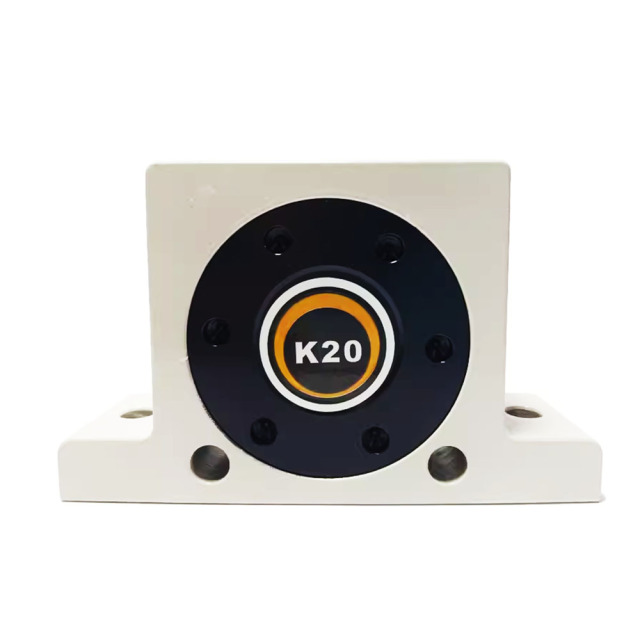

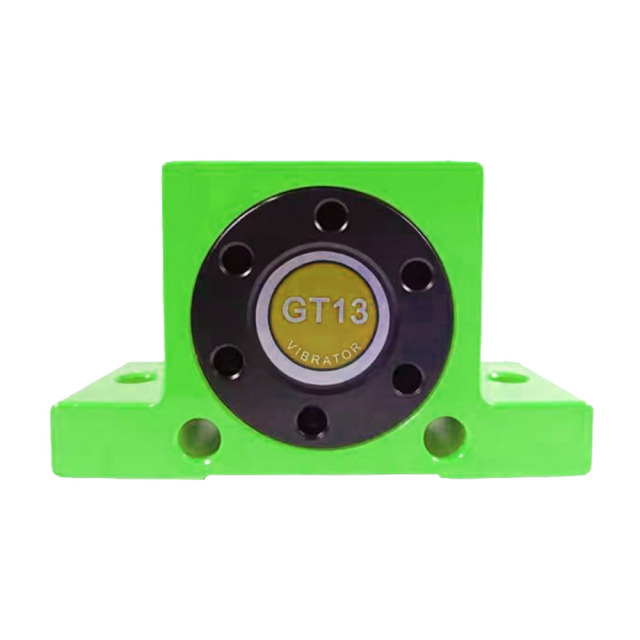

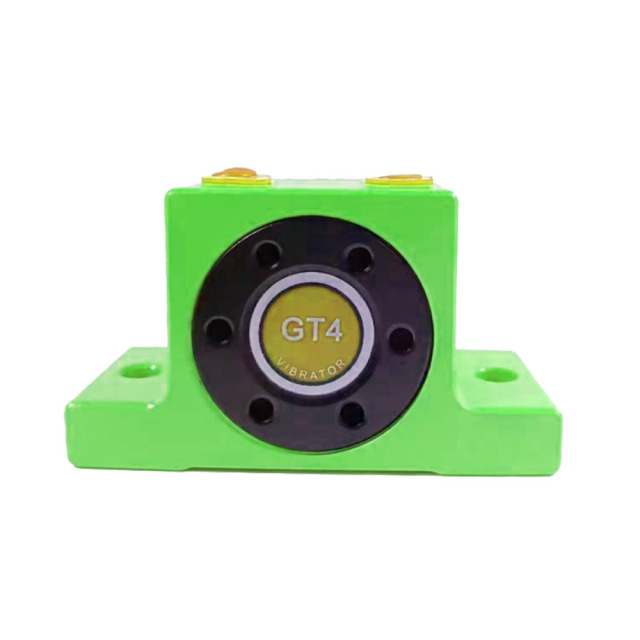

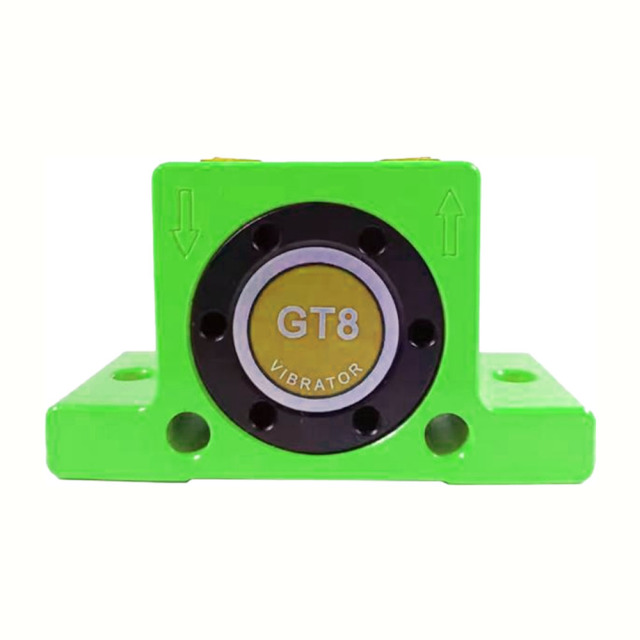

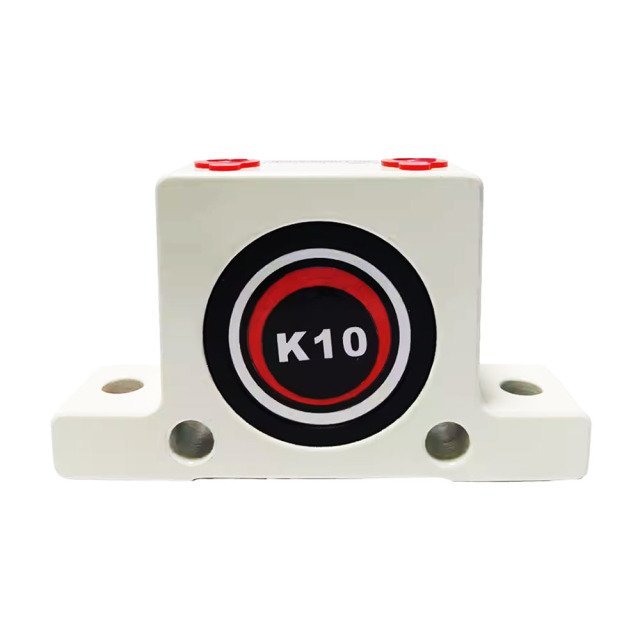

KEYILE科译勒 K-GT Turbine type pneumatic vibrator

No.K-GT
The combination of high speed and high eccentricity allows this vibrator to generate powerful vibration energy. The shell is made of extruded aluminum, with porcelain glaze on the surface and hardened end caps, making it suitable for the food and pharmaceutical industries. The K-GT series wheel vibrator complies with international noise regulations under current factory testing conditions.
  • KEYILE科译勒 K-GT Turbine type pneumatic vibrator
  • KEYILE科译勒 K-GT Turbine type pneumatic vibrator
  • KEYILE科译勒 K-GT Turbine type pneumatic vibrator
  • KEYILE科译勒 K-GT Turbine type pneumatic vibrator
  • KEYILE科译勒 K-GT Turbine type pneumatic vibrator
  • Description

  • Download

Instrument Feature


  1. High efficiency: The pneumatic vibrator adopts a high-speed vibration mechanism, which can generate high-frequency vibration and has high vibration efficiency and energy utilization.
  2. Strong adjustability: By adjusting the supply pressure and the opening and closing of the exhaust valve, the vibration frequency and amplitude can be adjusted to meet the needs of different application scenarios.
  3. Sturdy structure: The housing material of pneumatic vibrators is generally made of aluminum alloy or stainless steel, which has high strength and durability, and can maintain stable vibration performance in harsh working environments.
  4. Lightweight and convenient: Pneumatic vibrators are small in size, light in weight, easy to install, and suitable for vibration operations in various narrow spaces.
  5. Safe and reliable: Adopting a pneumatic drive system, no power supply is required, avoiding potential safety hazards in the electrical part and having high reliability.
  6. Good durability: The pneumatic vibrator has no vulnerable parts inside, stable and reliable operation, long service life, and low maintenance costs.
  7. Silent and environmentally friendly: Due to the use of pneumatic drive, the working noise of the vibrator is relatively low, which will not cause excessive interference to the environment and personnel, meeting environmental protection requirements.

Working Principle



The working principle of a pneumatic vibrator mainly relies on the high-pressure gas discharged from the air compressor being connected to the product inlet through a gas pipe. When gas pushes the piston upwards, the gas in the upper chamber of the piston is compressed and then discharged through the exhaust hole. When the piston reaches the end point, the gas automatically switches the ventilation direction through the groove and airway, allowing the gas to enter the upper chamber of the piston. The high-pressure gas then pushes the piston down to the end point, completing one cycle. This process continues to cycle back and forth, causing the vibrator to produce translational and shaking motion, thereby generating vibration force. This working method ensures that the pneumatic vibrator can effectively provide the required vibration force.

Application Field



Pneumatic vibrators are widely used in powder processing industries such as food, medicine, chemical, pesticide, feed, ceramics, glass, cement, fuel, etc. In these industries, pneumatic vibrators are commonly used for fatigue testing of parts or structural components, shaking and compaction of hoppers, linear and bowl feeders, sieves and filters, vibration tables, and mixing equipment.

  • Measurement medium: Pneumatic vibrators can transport, feed, compact, and/or separate all types of materials, such as chemical powders, corn, sand, oil pipelines, gravel, cement, etc.
  • Chemical industry: applicable to equipment such as reaction vessels, stirring tanks, fluid beds, vibrating screens, etc. in the chemical industry;
  • Food processing industry: can be used for equipment such as separation, screening, and conveying in the food processing process;
  • Pharmaceutical manufacturing: suitable for equipment such as drug mixers, dryers, granulators, etc.


K-GT Technical Specifications


Model

Frequency (V.P.M.)

Vibration force (N) Air consumption (/min)
0.2Mpa 0.4Mpa 0.6Mpa 0.2Mpa 0.4Mpa 0.6Mpa 0.2Mpa 0.4Mpa 0.6Mpa
K-GT-4 11.500 12.500 13.500 130 165 210 30 40 50
K-GT-6 11.500 12.500 13.500 130 165 210 30 40 50
K-GT-8 34.850 42.000 45.500 165 210 280 46 80 112
K-GT-10 34.850 42.000 45.500 165 210 280 46 80 112
K-GT-13 26.000 30.000 33.000 1220 2090 3160 120 200 290
K-GT-16 26.000 30.000 33.000 1220 2090 3160 120 200 290
K-GT-20 17.000 20.000 23.000 2170 4040 5520 185 325 455
K-GT-25 17.000 20.000 23.000 2170 4040 5520 185 325 455
K-GT-30 13.000 14.000 16.000 3300 5000 7150 330 530 745
K-GT-32 13.000 14.000 16.000 3300 5000 7150 330 530 745
K-GT-36 13.000 14.000 16.000 3300 5000 7150 330 530 745
K-GT-40 7.500 8.800 9.500 4350 7350 9850 408 428 680
K-GT-48 7.500 8.800 9.500 4350 7350 9850 408 428 680
K-GT-60 4.758 6.530 8.515 5700 9800 11150 505 600 920

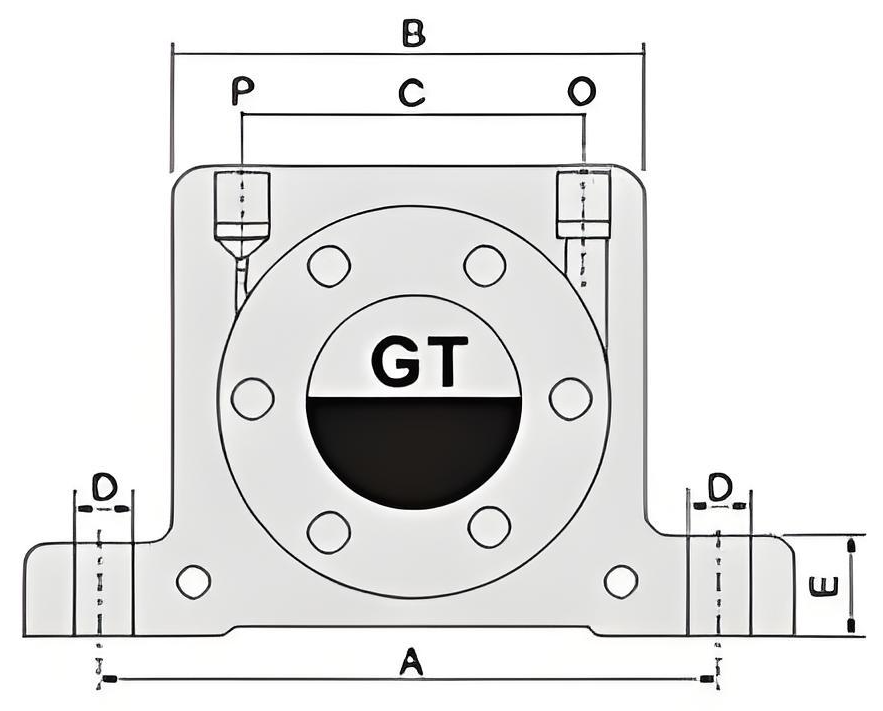

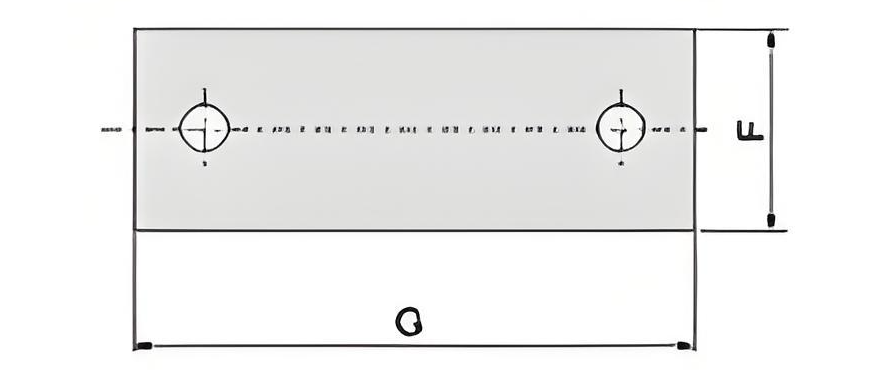

Outline dimension diagram (reference)


Model A B C D E F G P/O Weight
K-GT-4 56 40 20 6 10 28 70 1/8 280
K-GT-6 56 40 20 6 10 28 70 1/8 280
K-GT-8 68 50 28 7 12 35 86 1/8 280
K-GT-10 68 50 28 7 12 35 86 1/8 280
K-GT-13 90 65 39 9 16 43 113 1/4 610
K-GT-16 90 65 39 9 16 43 113 1/4 610
K-GT-20 104 82 56 9 17 56 128 1/4 1120
K-GT-25 104 82 56 9 17 56 128 1/4 1120
K-GT-30 130 103 76 11 21 73 160 3/8 2150
K-GT-32 130 103 76 11 21 73 160 3/8 2150
K-GT-36 130 103 76 11 21 73 160 3/8 2150
K-GT-40 152 122 85 18 27 80 194 3/8 3530
K-GT-48 152 122 85 18 27 80 194 3/8 3530
K-GT-60 195 140 96 21 30 95 240 1/2 5590
